7.8.13.  Value ranges

7.8.13.1. Type " Value range variable"
7.8.13.2. Type "Value range variable with naming"
7.8.13.3. Type "Value range variable with graphics "
7.8.13.4. Type "Value range variable " combined with IF condition (characteristic algorithm )
7.8.13.4.1. IF condition: Simple example
7.8.13.4.2. IF condition: Default value "Forced" or "Standard"

The characteristic attribute table in the PARTdataManager can show fixed values or also offer the option of selecting values within a range. Value range fields are marked with an icon . The icon is only displayed in the active row. Clicking on the icon opens the corresponding selection dialog.

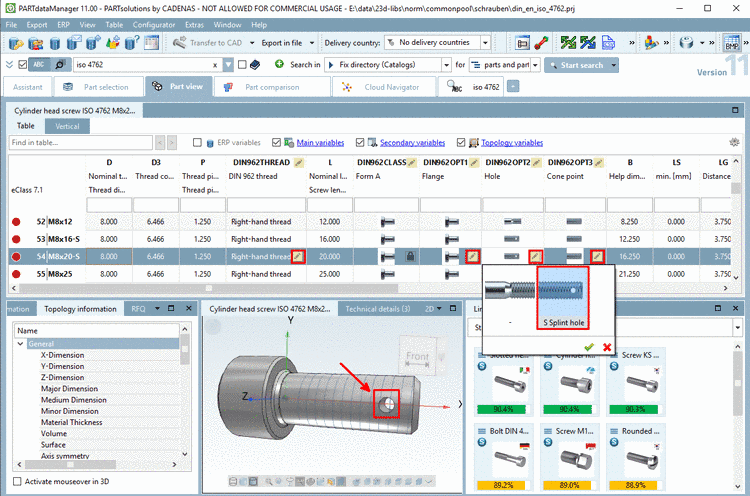

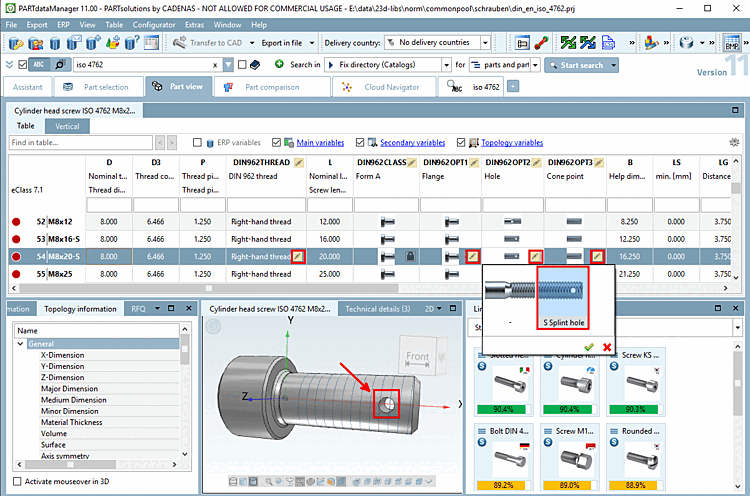

PARTdataManager value range selection exemplified with ISO 4762

PARTdataManager value range selection exemplified with ISO 4762

The exact mode of the value range field is determined in PARTdesigner -> Variable manager [Variable Manager] under Status.

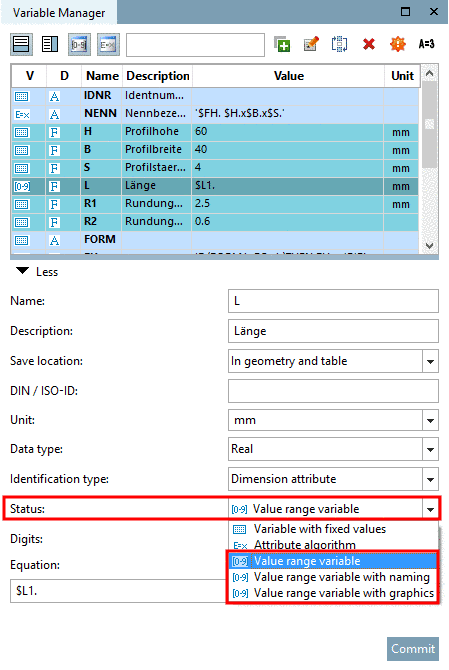

PARTdesigner - Variable manager [Variable Manager]: Selection options under " Status "

PARTdesigner - Variable manager [Variable Manager]: Selection options under " Status "

There are three types of value ranges:

  • Value range variable type: Value range with display of numerical or textual values

    There are various subtypes of the value range variable [Value range variable] type:

    • "from - to" without limitation or with limited min.- or max. value (numerical)

    • "from - to" with enclosed start and end value (numerical)

    • "from - to" without enclosed start and end value (numerical)

    • "from - to" with additional default value (numerical)

    • "from - to" with specified step width (numerical)

    • Listing of discrete values (textual or numerical)

    • "from - to" in combination with an IF condition. (Default values can optionally be set [default or forced].) Details on this can be found under Section 7.8.13.4, “Type "Value range variable " combined with IF condition (characteristic algorithm ) ”.

    [Note]Note

    Text values are always specified between two quotation marks ( 'Text [Text] '). Numerical values do not require quotation marks. Additional quotation marks are required in an IF condition (i.e. double for text and single for numerical values). Details on this can be found in the individual sub-chapters.

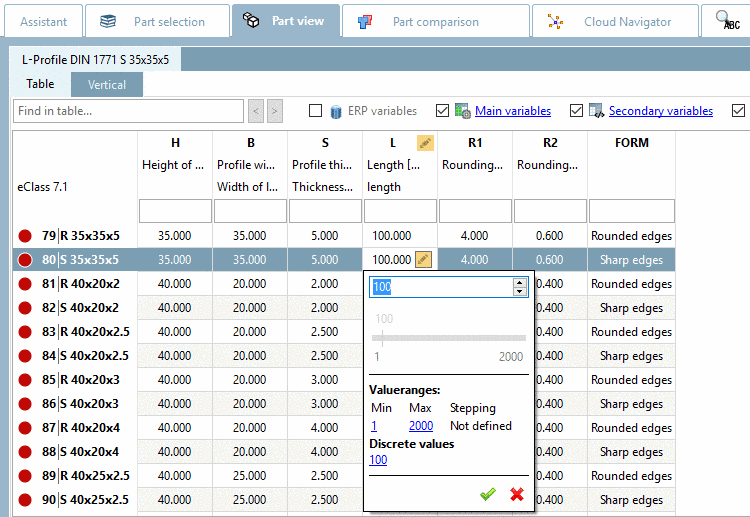

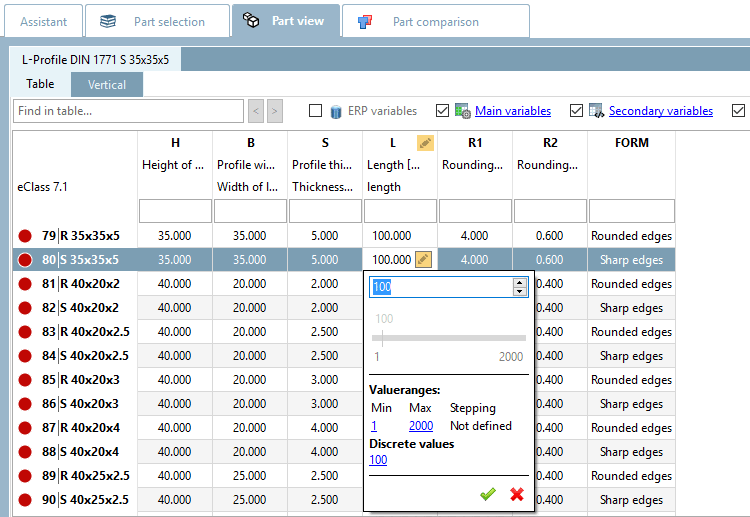

    PARTdataManager example: Value range "from - to" with insertion with input of discrete values or selection via slider

    PARTdataManager example: Value range "from - to" with insertion with input of discrete values or selection via slider

  • Type Value range variable with naming: Value range with display of textual values (with numerical values in the background)

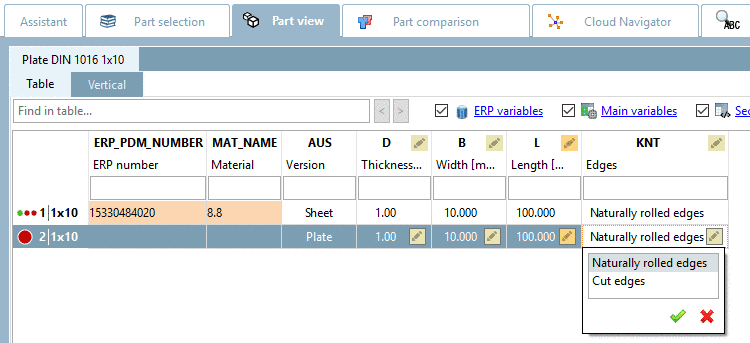

    PARTdataManager example: List field selection with different namings

    PARTdataManager example: List field selection with different namings

  • Type Value range variable with graphics: Value range with display of textual values (with numerical values in the background) + graphics

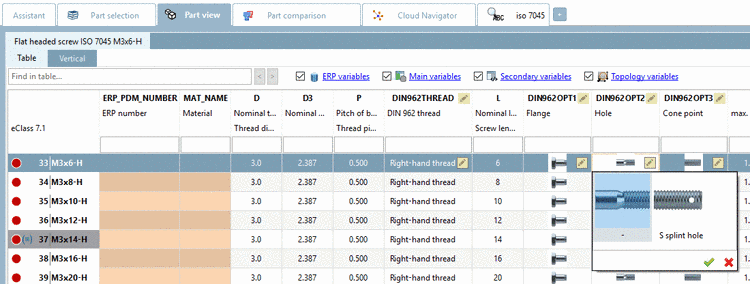

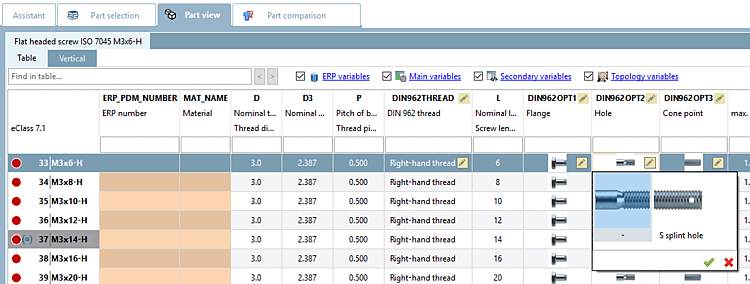

    PARTdataManager example: List field selection with namings and graphics

    PARTdataManager example: List field selection with namings and graphics

The following describes how the different value range types are created in PARTdesigner are created.
