2.5.11.2.3. Several SolidWorks versions in parallel operation

If you are operating several SolidWorks versions in parallel, please note the following:

  1. All relevant interfaces must be installed

    Example: Several SolidWorks interfaces installed in parallel

    Example: Several SolidWorks interfaces installed in parallel

  2. Before starting the respective SolidWorks version, the corresponding interface must be activated by executing the file register.bat in the respective subdirectory of the installation.

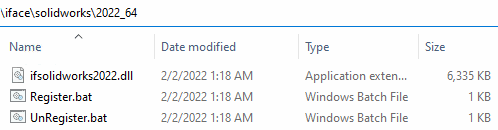

    For example, the file is located under $CADENAS/iface/solidworks/2019_64.

    Carry out register.bat

    Carry out register.bat

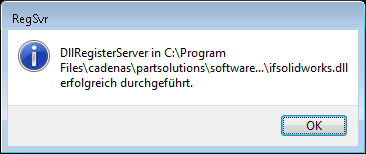

  3. -> If the registration was successful, you will receive a corresponding message.

    Message: Registration successful

    Message: Registration successful
