Partial search: Examples of use cases 1.3.4.10.5.3.
Partial search: Search for a hole pattern by selecting an area
|  |
| Prev | Next |

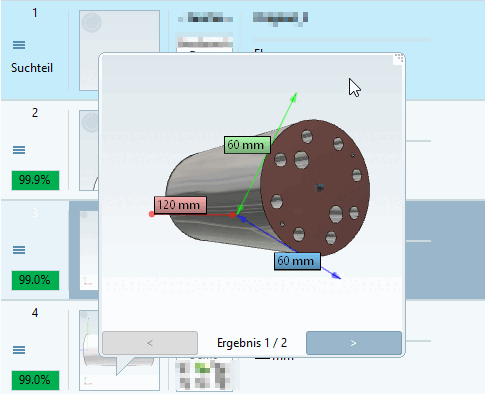

Example: Selection of the upper surface of a flange with several holes.
To record the hole pattern, the Inner contours option must be activated. With this procedure, the hole type (e.g. conical) and the hole depth (component length) remain open.
Alternatively, you can also select the holes directly.
In this case, in addition to the hole pattern, the hole depth and type (e.g. conical) are also defined so that more specific results appear.
