The catalogs of the CADENAS library are displayed in a separate directory of the reuse library and are physically located on the CADENAS PARTapplicationServer. The exact selection of the displayed catalogs and directories is license-controlled.

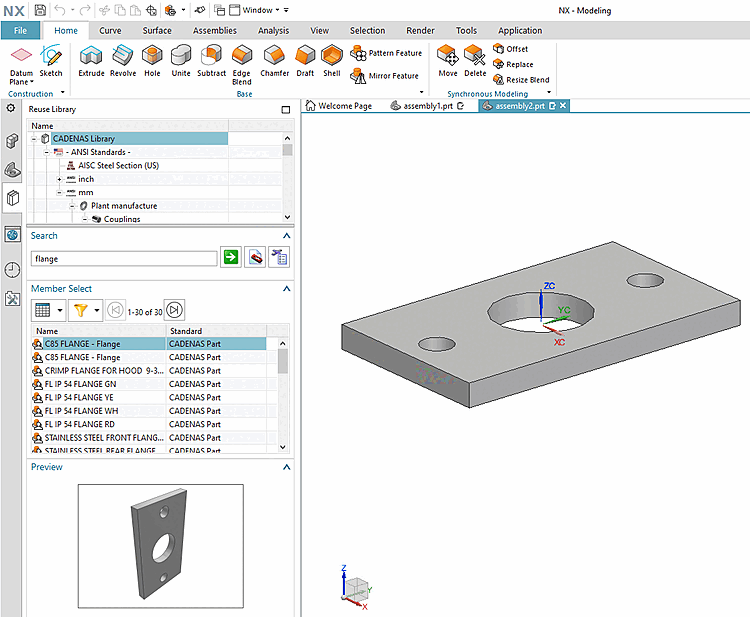

Browse the index tree or use the search function and then draw parts into the assembly via drag & drop as usual.

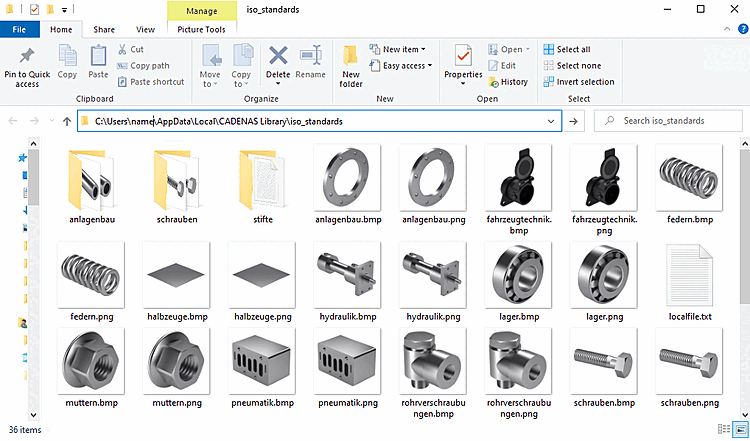

A simple image (thumbnails only) of the CADENASlibrary can be found at %appdata%/Local/.

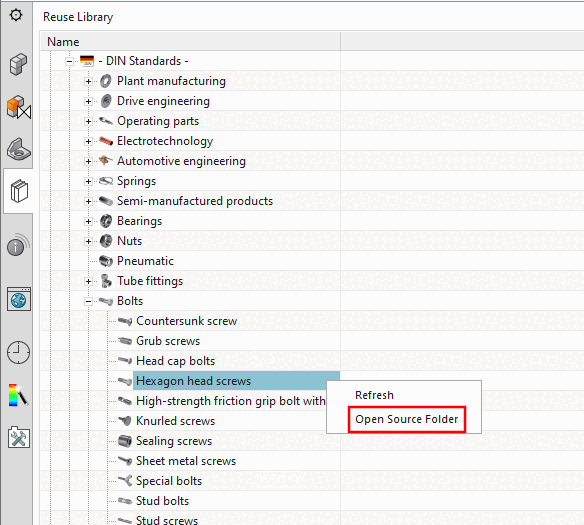

To go directly to the file level, use the context menu command Open output folder.

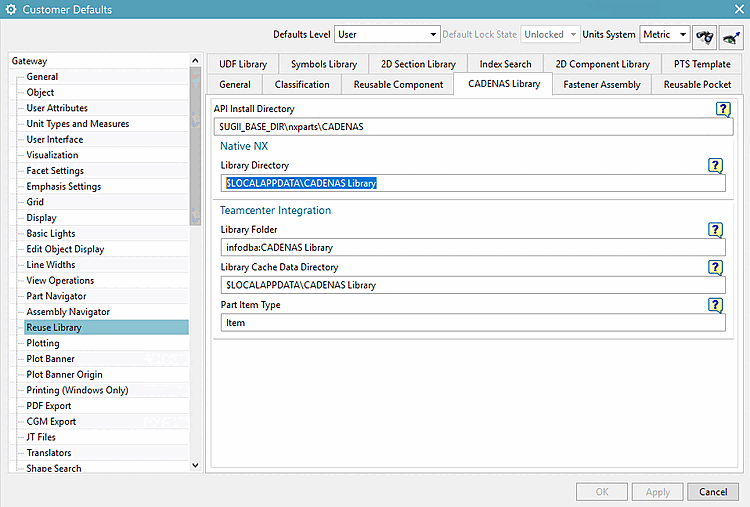

The user standards of the CADENAS library are NX-internal default settings and are displayed under Reuse library > tab page CADENAS library.

If several users are using Native NX, the library directory should be stored in a shared location such as T:\nxreuseshared. When exporting again, files are then reused and not newly created.

Additional setting options are available in the file siemenspsol.cfg.

This configuration file is stored under ..\Program Files\Siemens\NX<Version>\NXPARTS\CADENAS.

Details on the single setting options can be found in the configuration file itself.
