The Assembly tab page only appears for the Assembly Configuration [Assembly configuration] and Assembly Template [Assembly template] project types.

In principle, a distinction must be made between assembly configuration [Assembly configuration] and Assembly-Template [Assembly template] must be distinguished. The configuration is an assembly project whose structure in the PARTdataManager step-by-step and can also be individually influenced in its composition. A template, on the other hand, is automatically built up completely when called - like a template.

The distinction between these two assembly types is also clear from the different symbols in the directory tree.

When an assembly is created [Create] and saved [Save] in the configurator [Configurator], *.prj and *.asy or *.sbl are automatically created in the directory tree of PARTproject directory tree.

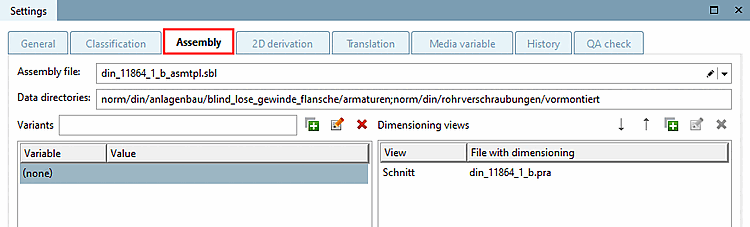

Assembly file: The field is automatically set with the corresponding file name when the file is created.

Data directories: The data directory is determined within 23d-libs and entered under Data directories.

Dimensioning [Dimensioning views] views: Files that show assembly dimensions must be specified in the Dimensioning views field.
