5.12.14. Create or edit your own class system

5.12.14.4. Classify part / edit attributes

5.12.14.4.1. Index update
5.12.14.4.2. Assign class
5.12.14.4.3. Edit attributes
5.12.14.4.4. Index update

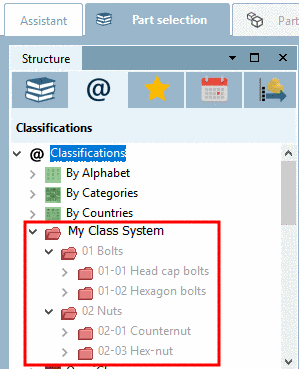

In the PARTproject -> Edit project -> General tab page dialog page, a component is to be added to the self-created classification, the characteristics edited and the result then displayed in PARTdataManager.

Note

	Note
In order for the classification in PARTproject, is displayed in the Edit project dialog box, the search index must be updated and PARTproject be restarted. See next point. In PARTdataManager only classes to which projects have already been assigned are displayed by default. The behavior can be set for each classification via a configuration file. `$CADENAS_DATA/classystem.cfg` -<classification name> -> key `ShowAllNodes` (create yourself if necessary) -> value range 0/1 (off/on) 0: All classes are displayed, also empty. 1: Only those classes are displayed, which contain at least one project.

In order for the classification in PARTproject, is displayed in the Edit project dialog box, the search index must be updated and PARTproject be restarted. See next point.

In PARTdataManager only classes to which projects have already been assigned are displayed by default. The behavior can be set for each classification via a configuration file.

$CADENAS_DATA/classystem.cfg -<classification name> -> key ShowAllNodes (create yourself if necessary) -> value range 0/1 (off/on)

0: All classes are displayed, also empty.

1: Only those classes are displayed, which contain at least one project.
