Connector without (global symbols) Connector symbol, Connector master symbol, Connector block symbol

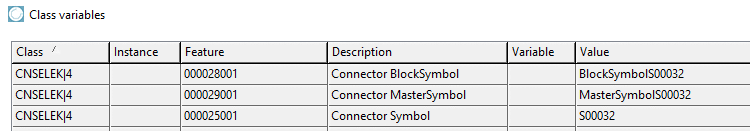

The figure shows existing global symbols

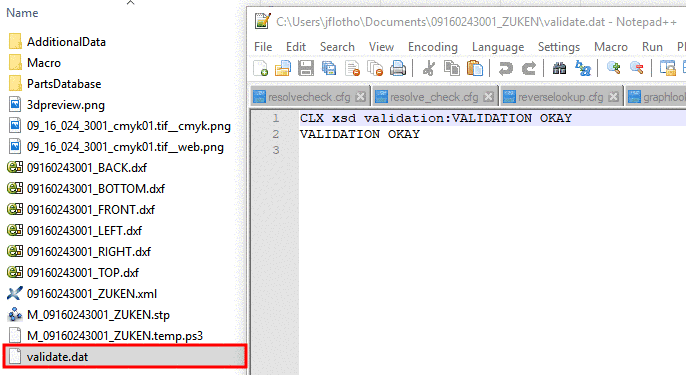

The following figure shows the case of a successful export of a connector with correctly classified symbol, master symbol and block symbol in particular.

VALIDATION OKAY

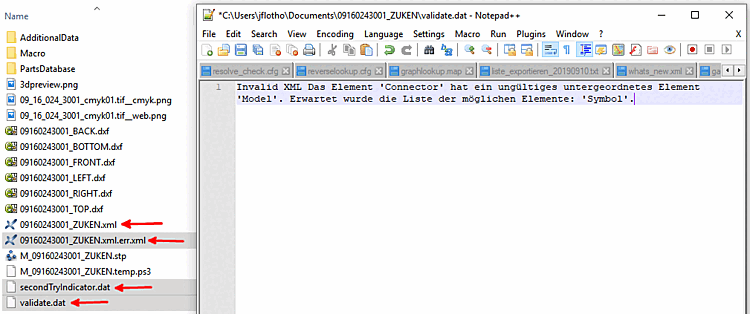

The next figure shows the typical output of a failed export due to missing global connector symbols.

The file validate.dat now contains a short error message indicating the problem of the missing global symbol. The xyz.err.xml file is the corresponding output file, so that the error can be narrowed down manually later if necessary. secondTryIndicator.dat indicates that a dynamic part has been generated as a default fallback. The corresponding data of the dynamic part can be found in the file xyz.xml.
