The context menu in the main window contains the following commands:
Using Add class [Add class...]... and Add subclass [Add subclass...]... to set up your class system.
![]() | Note |
---|---|
Only commands that make sense are displayed. For example, at the start of building the tree structure, the only command displayed is Add class [Add class...]... is displayed. |
|
![]() | Note |
---|---|
The commands Add class [Add class...]... and Add subclass [Add subclass...]... call up the same dialog box. |

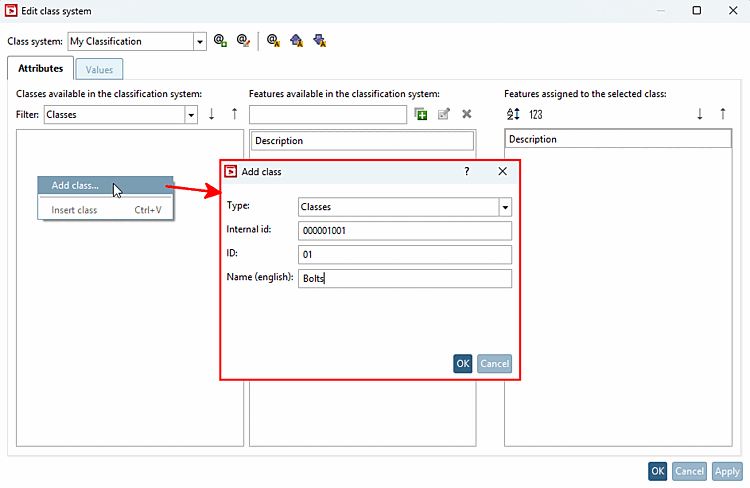

In the empty field -> Context menu -> Add class [Add class...]...: ID "01" (already entered), enter the following under "Name (german)": "Screws"
Context menu of "Screws": Add subclass [Add subclass...]...: ID "01" (already entered), enter the following under "Name (German)": "Wood screws"
Context menu of "Screws": Add subclass [Add subclass...]...: ID "02" (already entered), enter the following under "Name (German)": "Cylinder head screws"
Context menu of "Nuts": Add class [Add class...]...: ID "02" (already entered), enter under "Name (german)": "Muttern"
Context menu of "Nuts": Add subclass [Add subclass...]...: ID "01" (already entered), enter under "Name (german)": "Hutmuttern"
Context menu of "Nuts": Add subclass [Add subclass...]...: ID "02" (already entered), enter under "Name (german)": "Hexagon nuts"

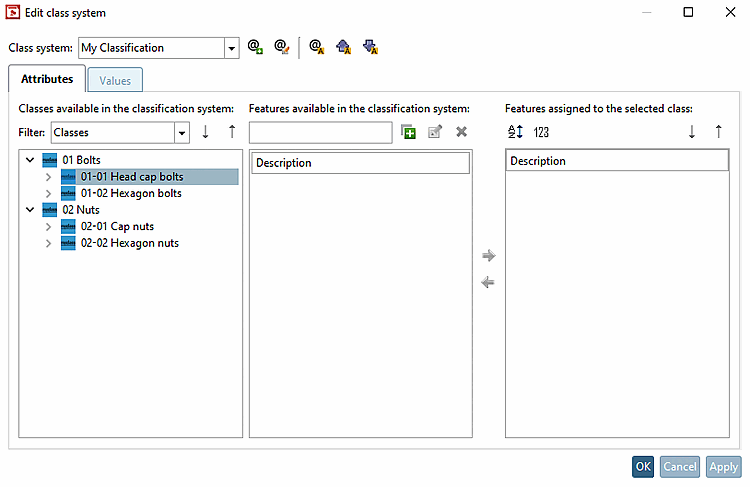

The result is the following view, for example:
