Open the sketch search by clicking on 2D sketch [2D Sketch].

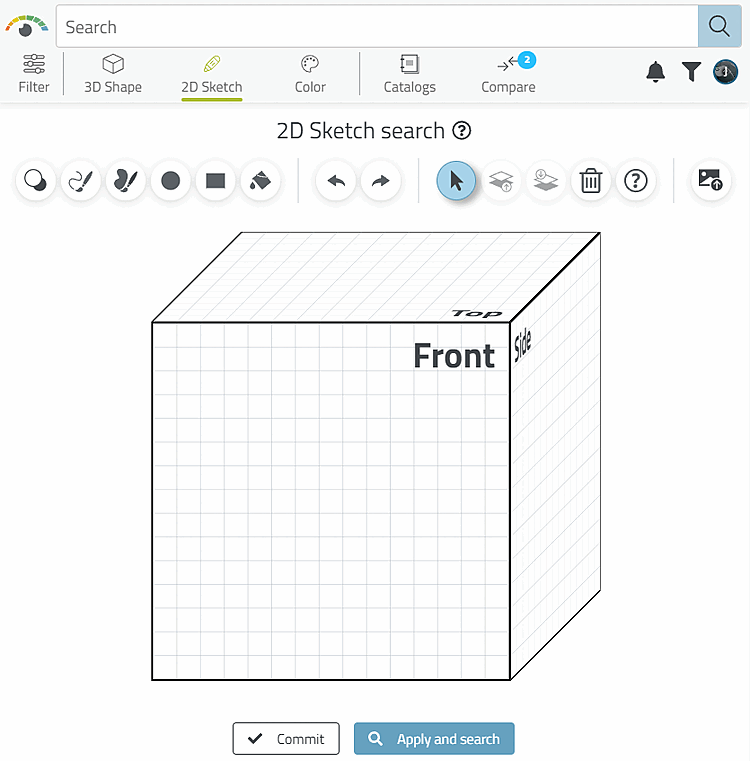

-> The 2D sketch search [2D Sketch search] with the cube for entering a maximum of 3 sketches is opened.

Click on the button image Upload. [Upload image]

-> An Explorer window opens.

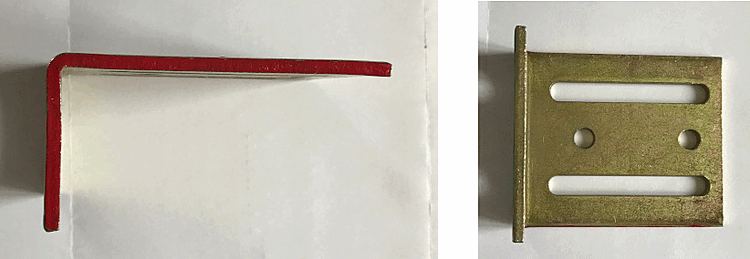

Select the desired image and click on Open.

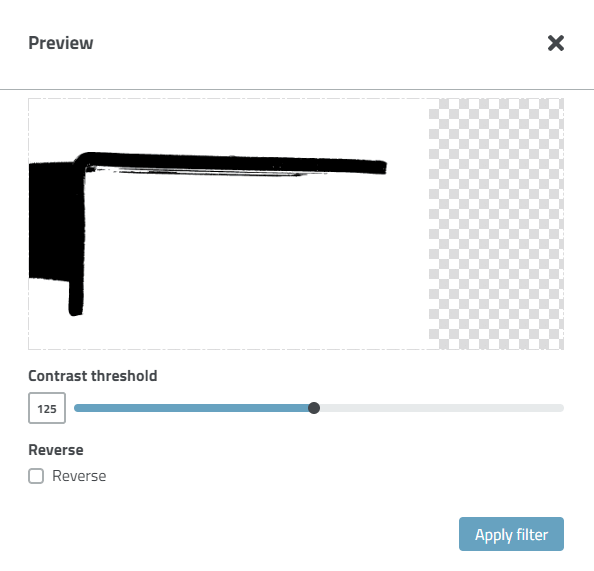

-> The preview [Preview] opens.

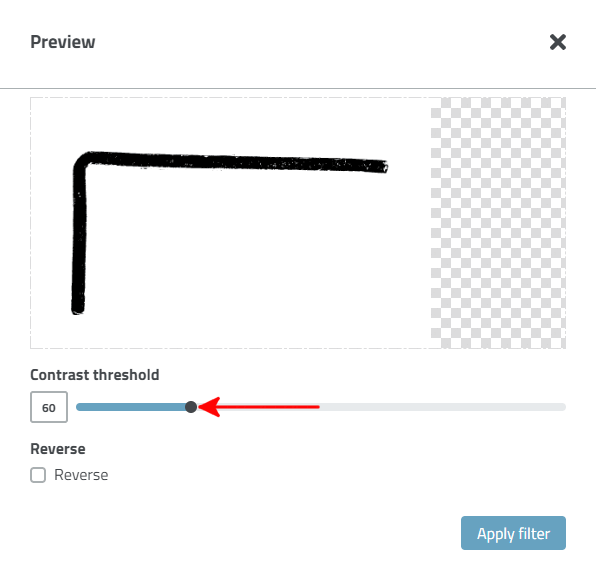

Adjust the slider under Contrast threshold so that the shadow disappears.

Click on Apply filter.

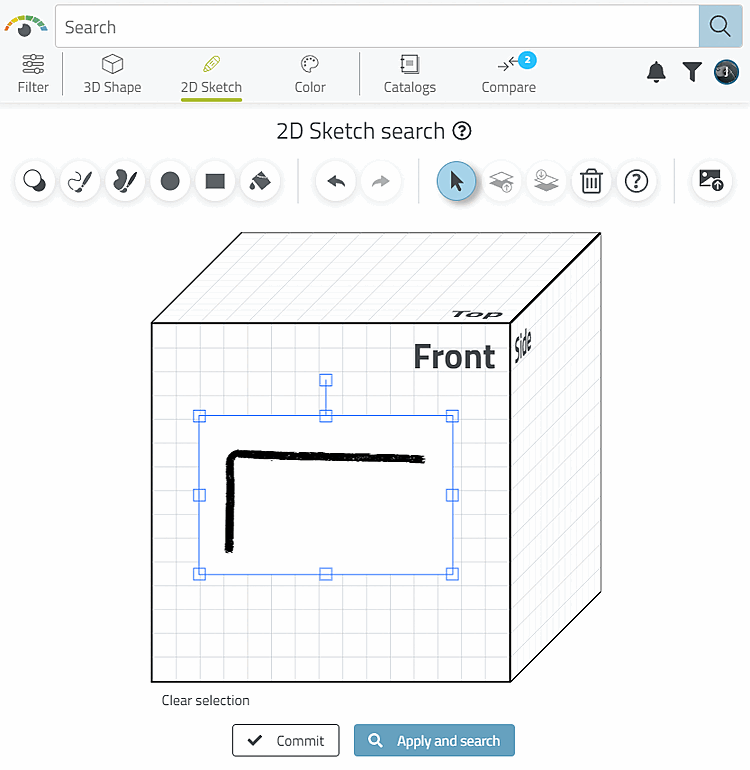

-> The preview image is inserted on the front of the cube.

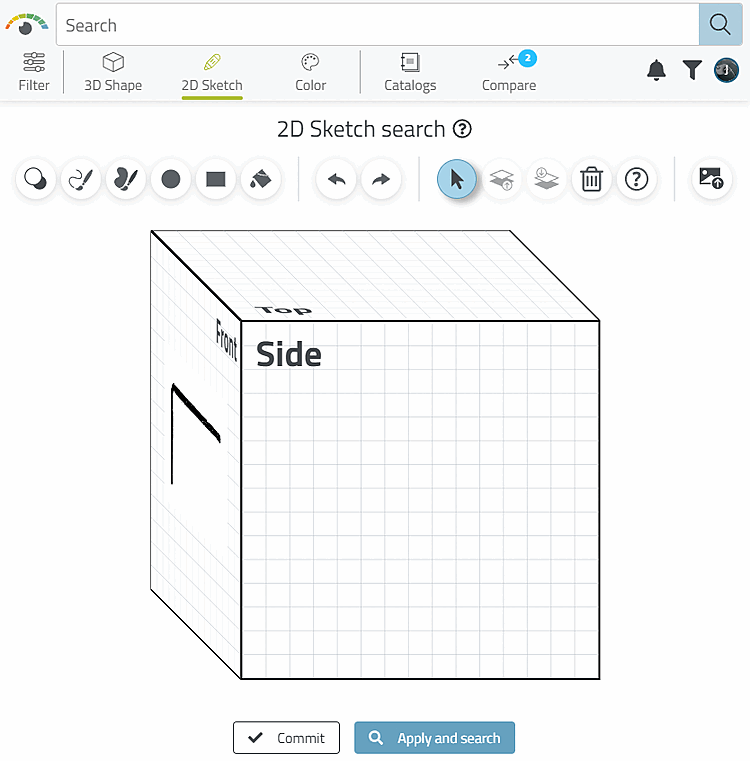

Click on Page [Side] to pan the side view to the front.

Click Upload image button again and upload the second image.

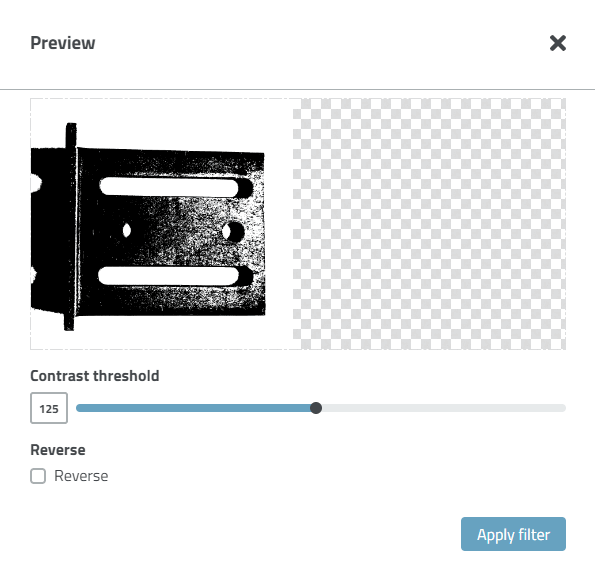

-> The preview [Preview] opens.

Adjust the contrast threshold [Contrast threshold] slider so that the shadow disappears.

If this does not work without important image details also disappearing, insert the image with the best possible setting by clicking on Apply filter.

-> The preview image is inserted.

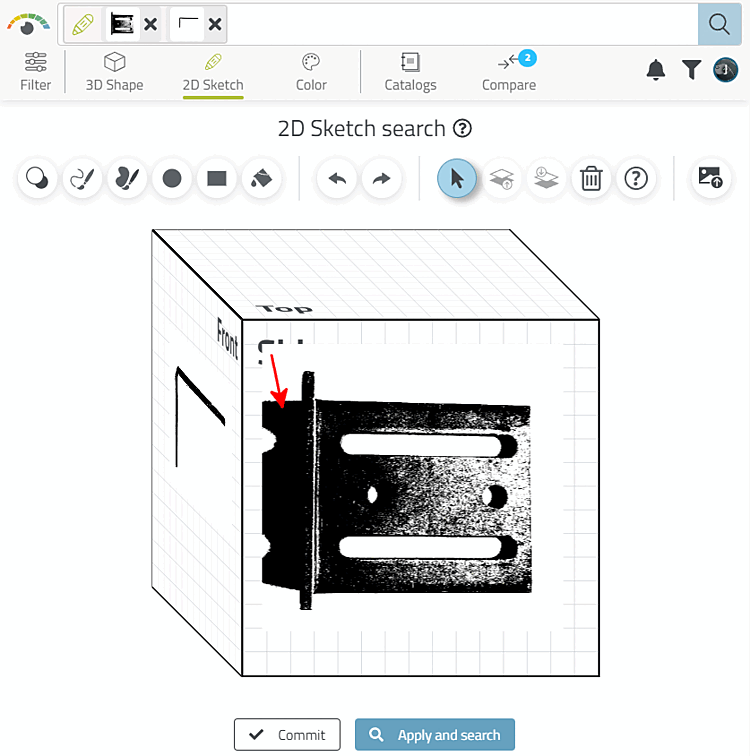

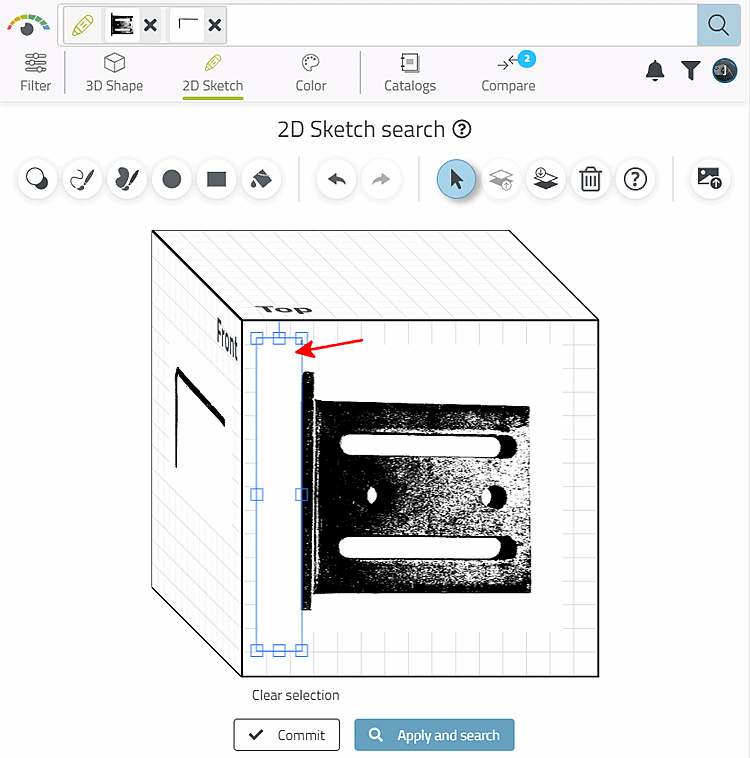

Click on the button rectangle [Rectangle] and just cover the shadow with a white rectangle.

Click on Apply and search.

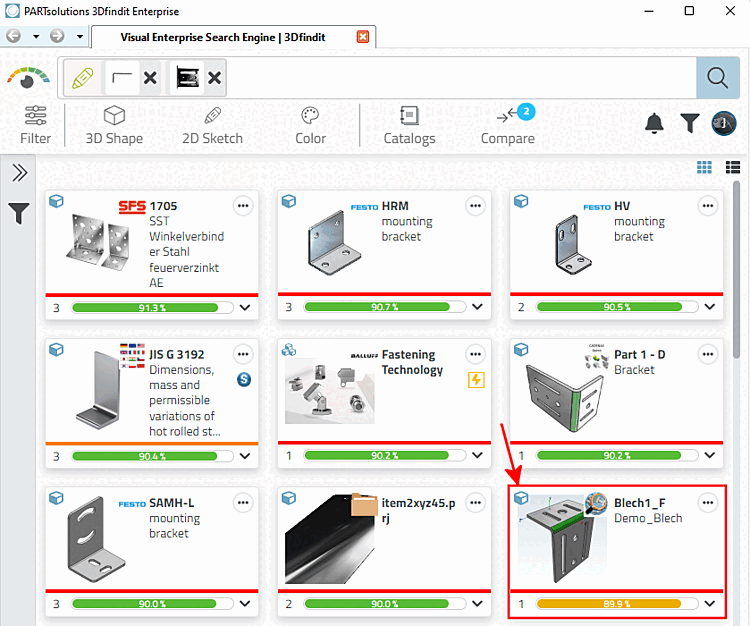

-> The results are listed and the part you are looking for is among the first hits.
