6.3.4.1. Catalog download - Partial

[Note]Note

The previous partial checkout is not compatible with the new one (from V12.10). In this case, uninstall the catalog and repeat the download.

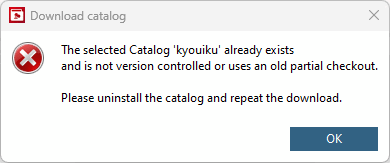

Partial checkout error message

Partial checkout error message

[Note]Note

A partial download enables a faster download speed, but only these selected directories will be available later. Please note that some functions may require additional directories. (For example, a link project requires the project to which it points).

A corresponding message appears when you call it up.

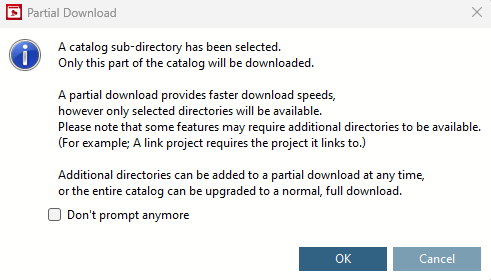

Part Download [Partial Download] dialog box

Part Download [Partial Download] dialog box

To download individual directories of a catalog, proceed as follows:

  1. Select the catalog root directory and click on the context menu command Download catalog from server.

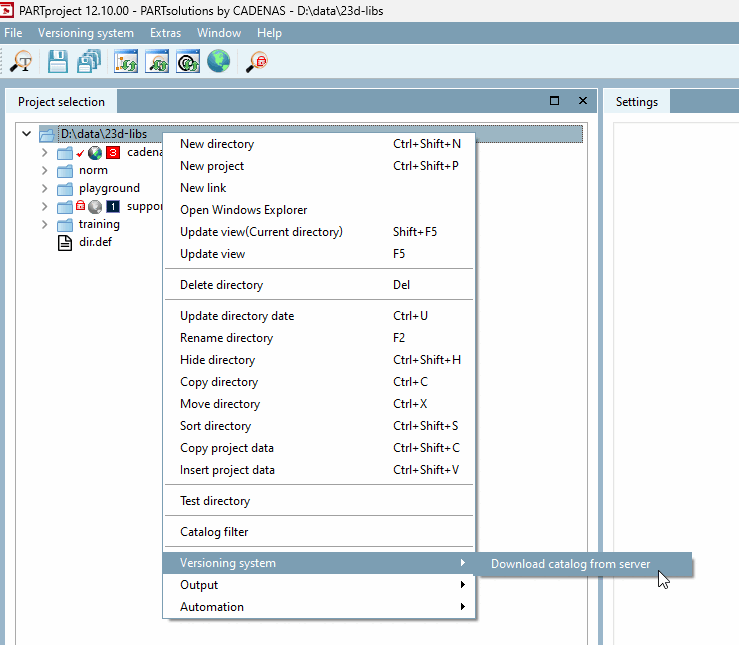

    PARTproject > Context menu catalog root directory > "Version management [Versioning system]" > "Download catalog from server [Download catalog from server]"

    PARTproject > Context menu catalog root directory > "Version management [Versioning system]" > "Download catalog from server [Download catalog from server]"

    → The Select catalog dialog box opens.

    Select catalog" dialog box with selected subdirectories

    Select catalog" dialog box with selected subdirectories

  2. Select the desired subdirectory or subdirectories (multiple selection with the Ctrl key) and confirm with OK.

    → The selected directory or directories in the catalog and the files in them are downloaded.

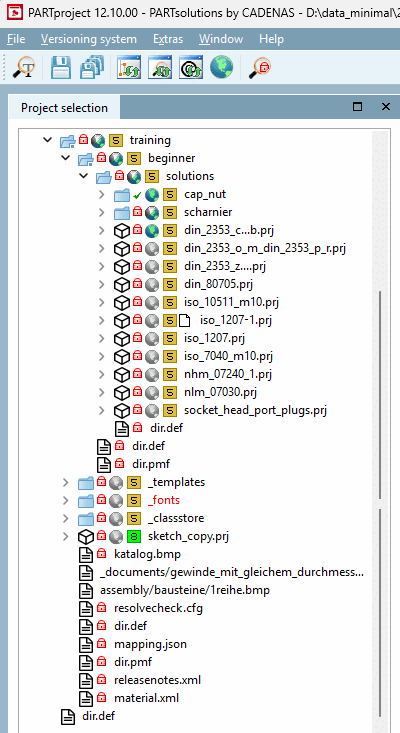

    Download result

    Download result

    [Note]Note

    Special directories and files are also downloaded automatically:

    • _fonts

    • _materials

    • material.xml

    • etc.

    [Note]Note

    Additional directories can be added to a partial download at any time afterwards, or the entire catalog can be upgraded to a normal, complete download by simply selecting the catalog root element.

Partial downloaded directories are marked with a special icon marked. In addition, a corresponding Tooltip.

Some commands for ERP mapping and publishing are not available for catalogs with partial downloads:

  • Generate QA status... [Generate QA catalog...] (at catalog level)

  • Add ERP mapping

  • Edit ERP mapping

  • Perform ERP mapping for the entire catalog [Execute ERP-Mapping for the whole catalog]: If the ERP dialog opens when uploading changes to the server, this button is deactivated. A corresponding tooltip is displayed to explain this.
