5.12.11.29.3.2. Classify device type according to CNS classification -> IEC Code 81346_2

To determine the purpose and task of objects, the setting of IEC_81346_2_CODEis mandatory for electrical components.

Proceed as follows:

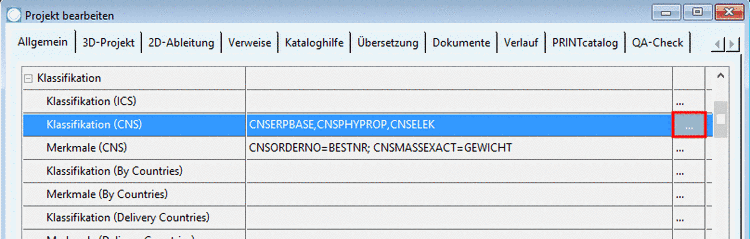

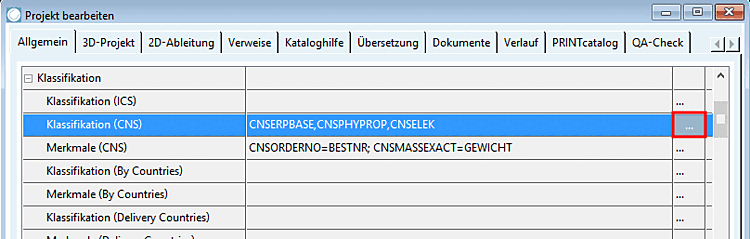

  1. On the General tab page, select the classification (CNS) and click ....

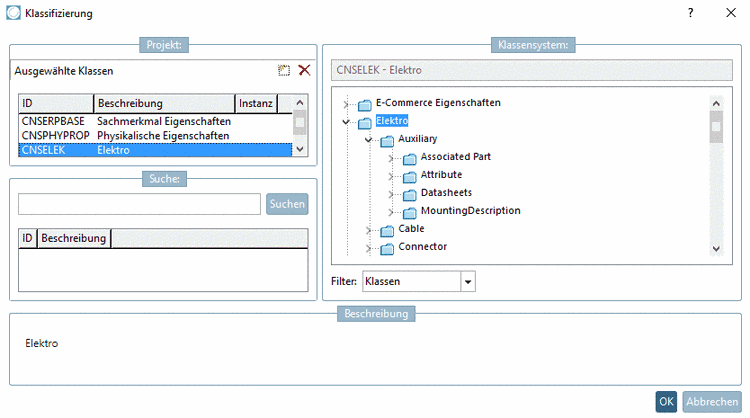

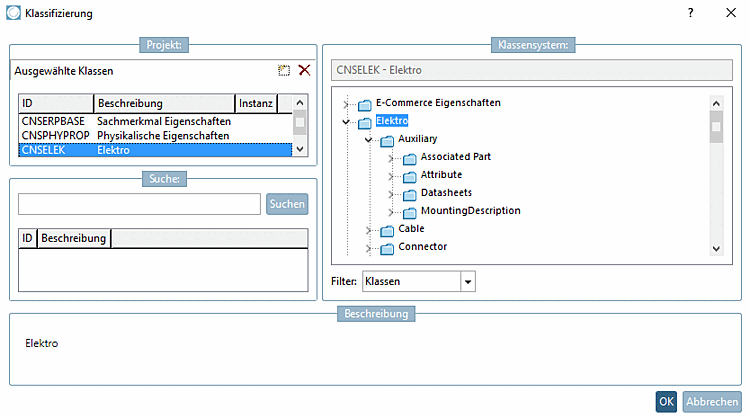

    -> The dialog box "Classification" is opened.

  2. Instantiate the class CNSELEK. (= Double-click on the class Elektro )

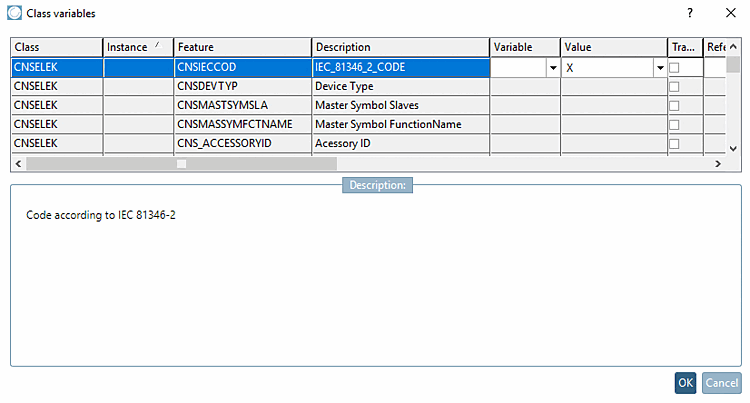

  3. Set the corresponding value under class CNSELEK -> feature CNSIECCOD (description IEC_81346_2_CODE).

    Here in this example the value is "X" (Connecting objects).

    Information on determining the correct value can be found at https://de.wikipedia.org/wiki/EN_81346[German] or https://myelectrical.com/notes/entryid/24/iec-reference-designations [English] .
