7.7.1.2.3. Example 2 - Overwrite face attributes

Initial situation: On the selected face, two attributes are already set.

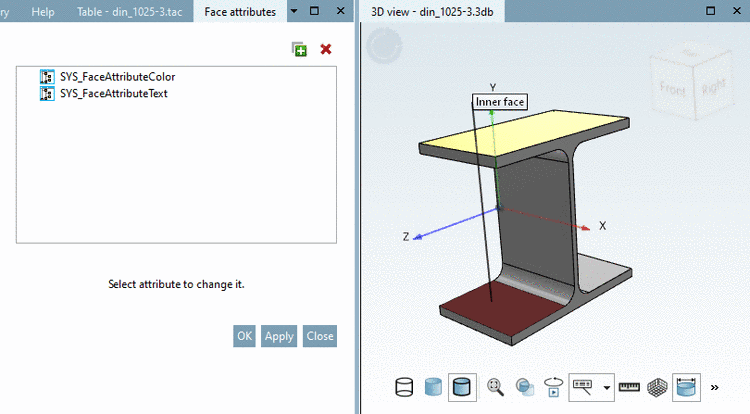

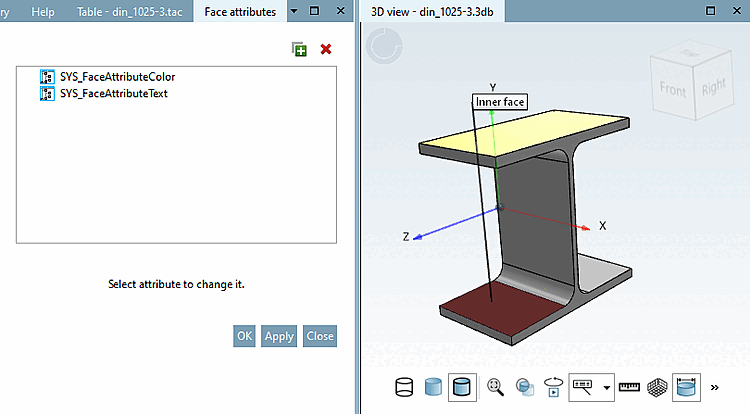

On the selected face, a color and a text attribute is already set.

On the selected face, a color and a text attribute is already set.

[Note]Note

Once selecting any face with already assigned attributes anew, they are displayed in the docking window Face attributes.

Now the already assigned text attribute shall be modified and at the same time a new instance be set on another face.

  1. Select the face where the text attribute is already assigned and in addition another face.

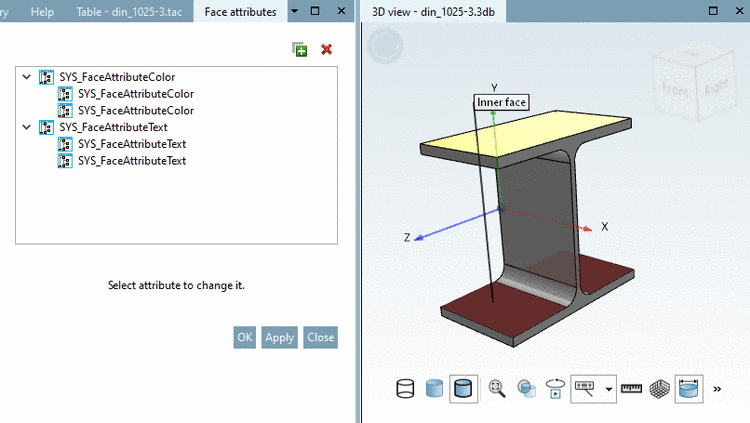

    -> Once multiple faces are selected, in the docking window, a tree structure with parent and child elements is displayed.

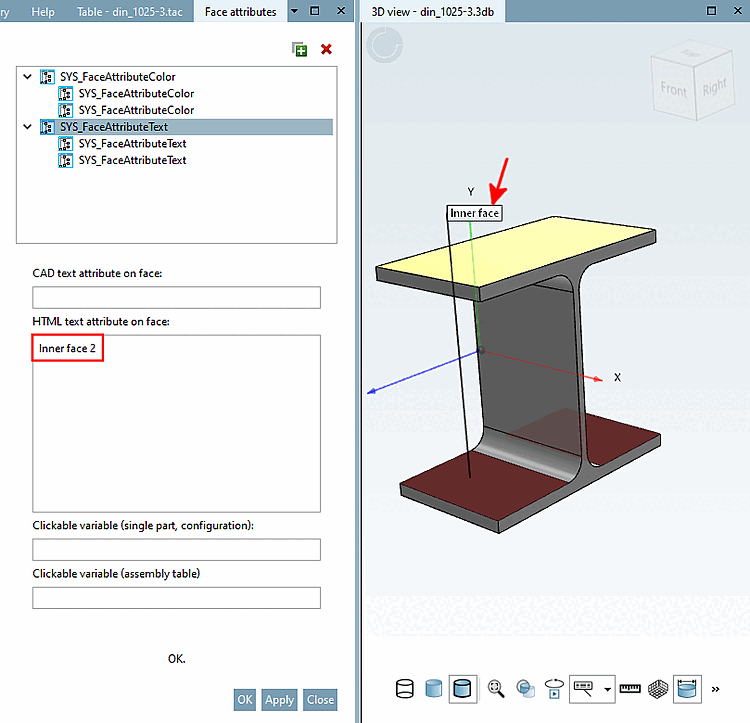

  2. Select the textual parent element and under HTML text attribute on face, enter the new modified text.

  3. Click Apply.

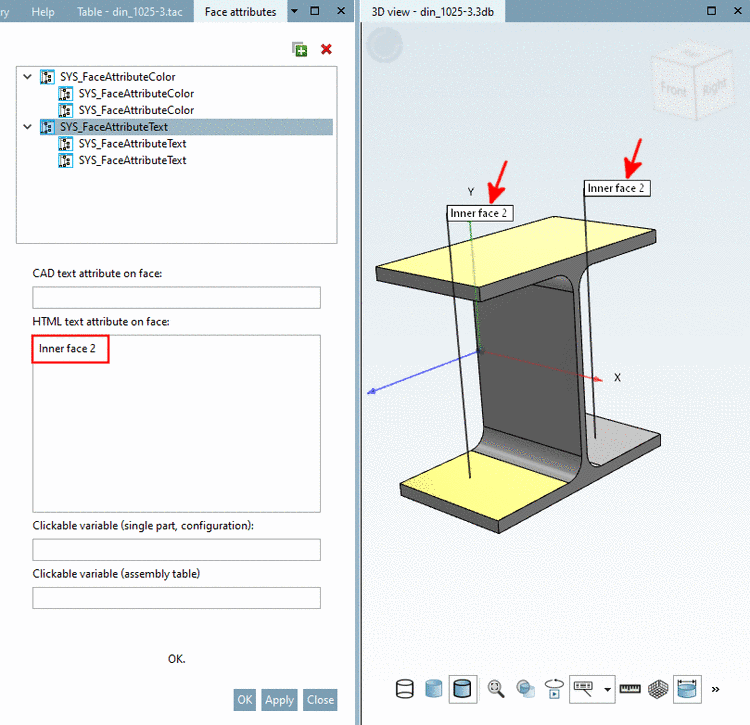

    -> All selected faces get the new value (even if before only one face contained a text attribute). If you explicitly want to change the text attribute of a special face, then best only select this one face.
