7.13.1.  Configurator function

In the docking window configurator [Configurator], individual parts can be combined to form complex assemblies [Assemblies].

Components can only be configured to an assembly if they have been assigned connection points in the PARTdesigner Connection points have been assigned to them!

A set of rules [Set of rules] is then created in the configurator [Configurator], which links the components with each other using the connection points [Connection points].

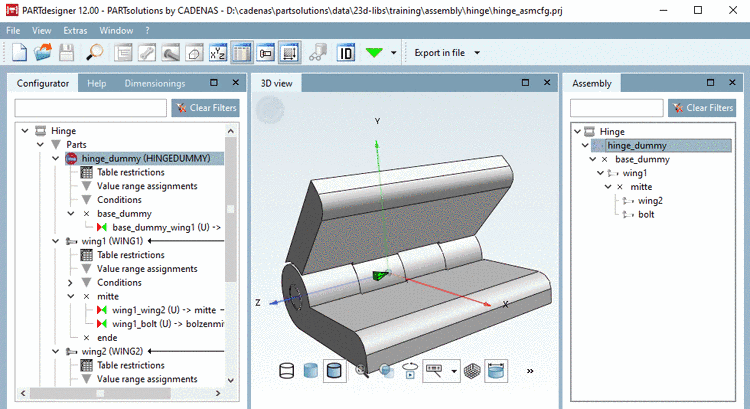

Built up assembly with set of rules

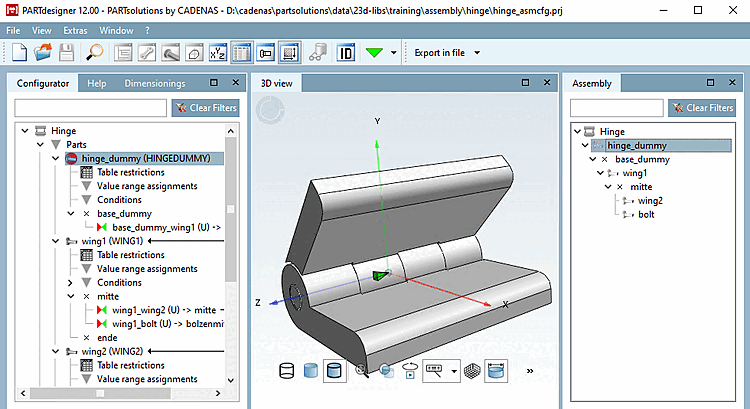

Built up assembly with set of rules

The set of rules states...

  • ...which connection parts will be available for the Start element in PARTdataManager,

  • ...at which points these parts can be added to the start element and among each other

  • ...and how the corresponding table should be dimensioned.
