1.3.11.6. Settings

The setting options are explained below:

  • Search type

    The search type (text search [Text Search], geo search [Geometric Search], etc.) can optionally be displayed with a colored background.

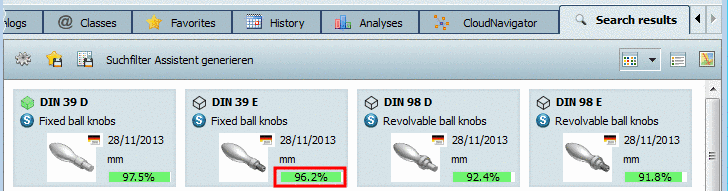

  • Percent

    The following options are available for displaying the geometric degree of conformity:

    • Off

    • black/white

    • Color

  • Preview Image

  • Similar Nodes

    The red number in the downright corner shows the number of similar nodes. When you click on the node, then all other similar nodes are displayed with red frame.

  • Company Logo

  • Icons

    The same icons of the standard view are also displayed in the CloudNavigator.

    Parts transferred to the part comparison are marked with a special icon .

    Part has been transferred to the part comparison

    Part has been transferred to the part comparison

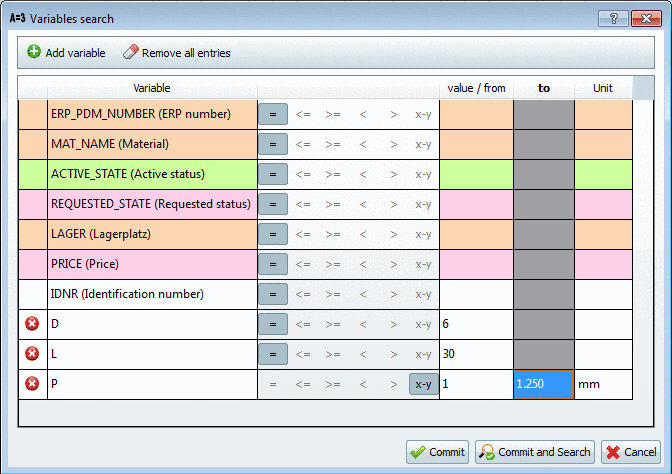

    With ERP integration, the ERP icons are also displayed in single part mode [Single parts].

    With ERP integration

    With ERP integration

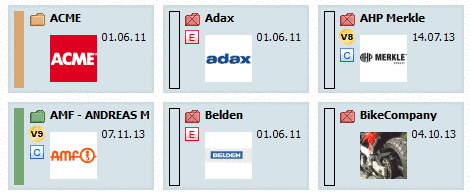

    With ERP integration, the Indextree colors are adopted in part families and individual parts mode [parts and part families].

    With ERP integration

    With ERP integration

    [Note]Note

    When the mouse cursor is moved over an icon, a tooltip is displayed.

  • Title

  • Details

  • Mark new Results

    Optionally you can display the "New" tab top right.

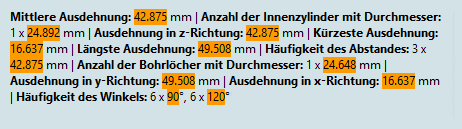

  • Part information displayed enlarged

    If the results in the Cloud Navigator are zoomed out in order to keep the overview, then to display the part information enlarged is helpful. Move the mouse cursor over the desired part.

  • Search settings

    • Number of search results [Number search results]: Number of search results displayed. The setting is made by entering the number directly or using the arrow keys.

      In the following figure you can see the actual number of results top right.
