5.12.11.1.3.2. Axes orientation at Q&S import

In order to avoid the need of later manipulation, the correct orientation of axes should already be set for the Q&S import.

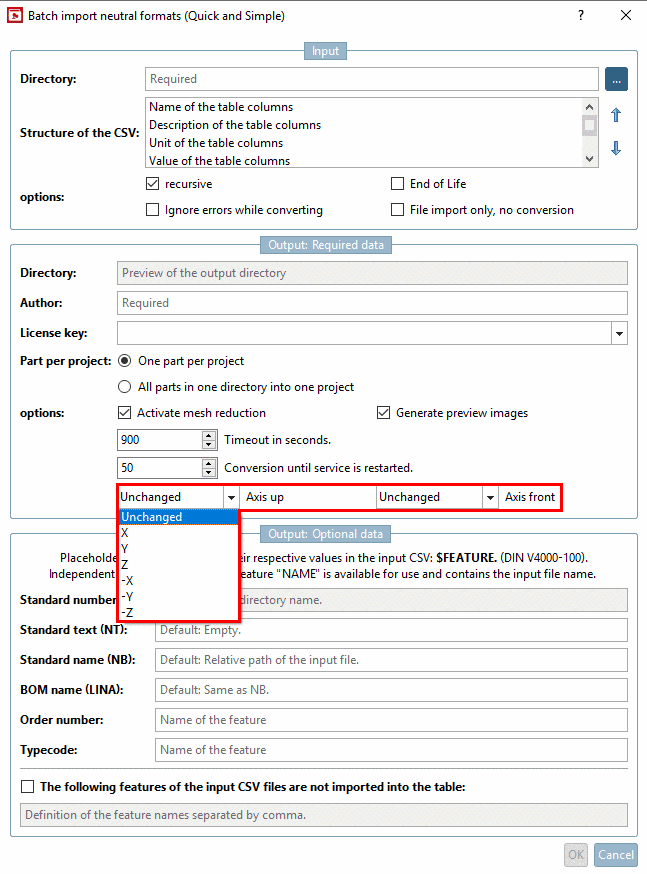

Import neutral formats in batch run (Quick and Simple) [Batch import neutral formats (Quick and Simple)] -> Options [options] -> Axis top [Axis up] / Axis front

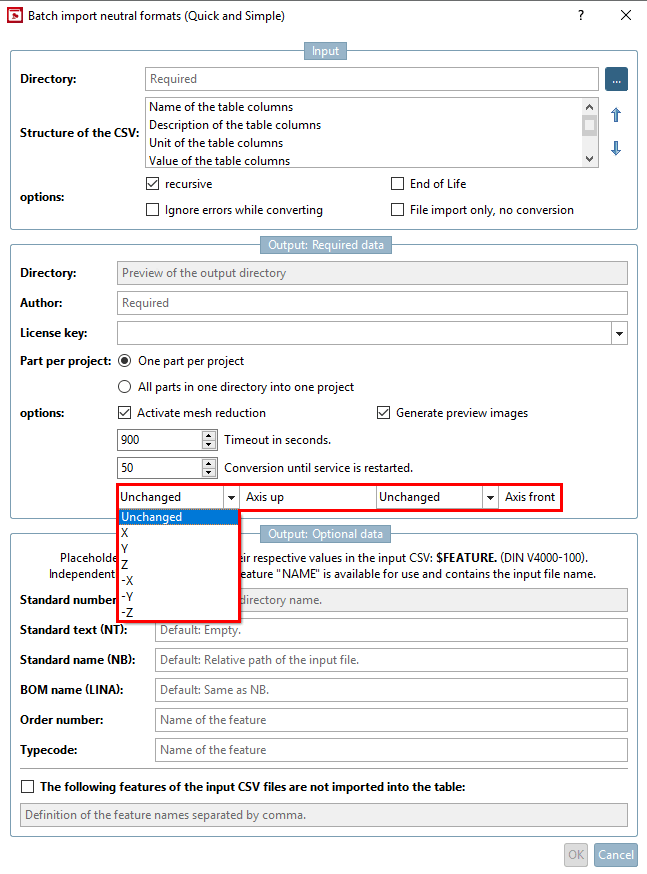

Import neutral formats in batch run (Quick and Simple) [Batch import neutral formats (Quick and Simple)] -> Options [options] -> Axis top [Axis up] / Axis front
