3.1.9.1.16.1. CATIA Macro

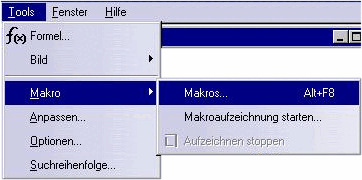

  1. Catia V5: Within the Tools menu, select the command Macro, Macros....

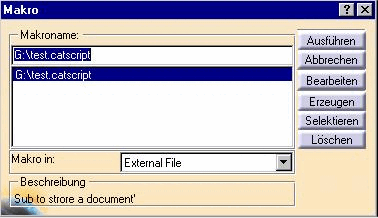

  1. In the Macro in: field, select the External file option.

  2. Enter the macro name or choose it via the button Select.

  3. Confirm with the button Execute.

  1. In the VBScript window, you can specify the target directory [Destination directory] in which the part is to be saved. If you do not want to save the macro file, simply click Cancel immediately.

--> The macro is played.
