5.12.5.1.2.2.  Automatic take-over

A classification was possibly already conducted and the classification number already entered at another location. Using the following options the number can be extracted at said location and used for the allocation.

The following options can also be combined:

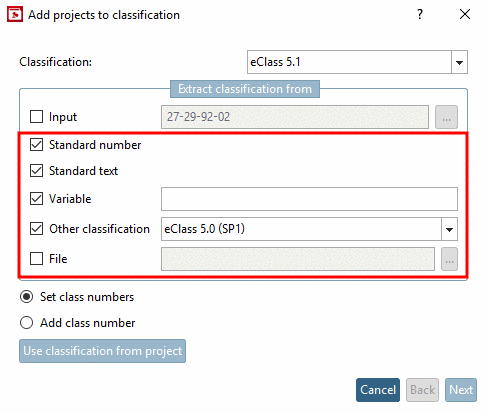

Set classification

Set classification

  • Standard number

  • Standard text

  • Variable

    Enter the appropriate variable of the table in which the number is located.

  • Other classification

    If a classification for eClass 4.0 was already conducted, for example, then this information can now be mapped to eClass 5.1.

    [Note]Note

    Entries are only available in the list field if a mapping has been made for the target classification (1st field in the dialog) under Extras -> Class systems: Fol [Class systems: map...] ders... (see Section 5.6.4.3.2, “ Map class systems... ”...).

    In the Add projects to classification dialog, only classes are transferred for:

    • Entries with defined mapping

    • Entries with defined multiple mappings

    Classes with only suggestions and classes without assignments are not used when setting the classification.

  • File

    The classification can also be set using the File option.

    The file must contain two attributes: ClassId and NN (norm number). Any number of ClassId can be set for each standard number.

    Example file

    Example file

    Activate the checkbox and use Browse ... to set the path to the file.

[Note]Note

The automatism can also be used to fill your own classification.

Example: Taking over the order number from a table row in order to build your own classification.

For more information on creating your own classification, see Section 5.12.14, “Create or edit your own class system ”.
