2.5.8.2.2.  Insert 3D - Component placement

By default, the placement dialog is available. See Section 2.6.2, “ Insert from the standard and purchased parts library via "PARTdataManager"”.

Assembly Constraints

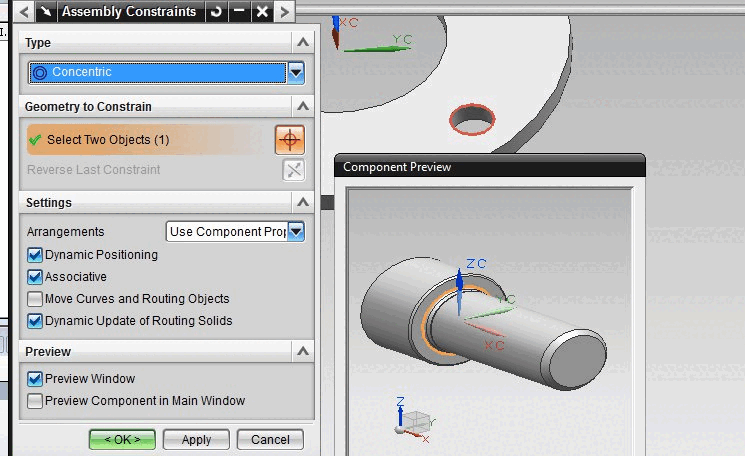

Assembly Constraints

Insert the part with the NX placement method.

Screw inserted

Screw inserted
