1.3.4.7.4.2.  Automatically create and modify sketches from 3D

You can automatically create view sketches from any part of the directory structure or a results list, then modify them modify and use them for a sketch search.

  1. Call: Click the context menu command Sketch search with sketches of this part [Sketch search for this part].

    You can find the command in the context menu of projects (in the index tree or result lists).

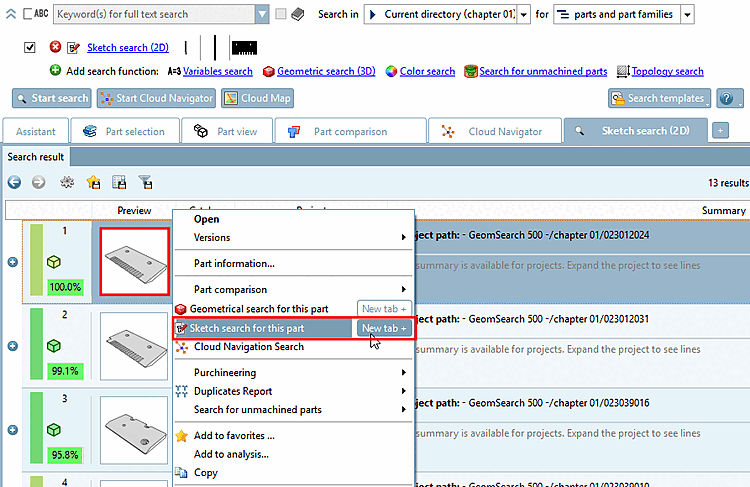

    Example: Call from search results [Search results]

    Example: Call from search results [Search results]

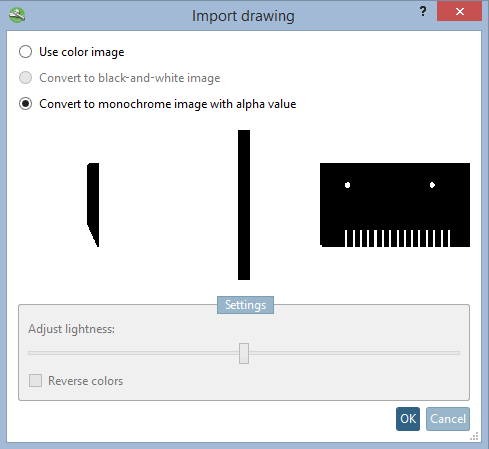

  2. Three sketch views are automatically generated and displayed in the Import drawing dialog box.

    If the Convert to black and white image [Convert to black-and-white image] option is activated, you can optionally invert colors [Reverse colors] and adjust brightness [Adjust lightness] before importing.

    Click OK to accept the drawings and display them in the list of search methods.

  3. Click on the Sketch search (2D) link to open the dialog box for editing the sketches. You can now use the sketches in their current state or, if necessary, edit them further and only then use them for a sketch search.

    Sketches in the sketcher

    Sketches in the sketcher

    You can find details on the sketcher under Section 1.3.4.7.6, “ Drawing Tools”.
