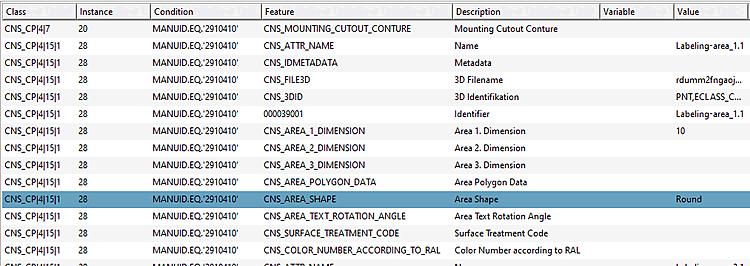

The class CNS_CP|4|15|1 describes two-dimensional surfaces intended for laser marking in analogy to the ECLASS block AAZ762. The geometry is defined in analogy to the previous classes. Accordingly, the use of simple shapes such as circles, squares and rectangles is recommended. This ensures extensive compatibility between the various classification and target systems.
A general outline can also be defined for this class via ADDFILE://<value of ID> using an external vector format (e.g. DXF). Here, the Area Polygon Data attribute (CNS_AREA_POLYGON_DATA ) is filled in complete analogy to the drilling patterns and the other classes that use outlines. Any surface properties and treatments can be defined using the Surface treatment code and Color Number according to RAL in accordance with the ECLASS standard.
