1.7.5.8.3.  Block [settings] Key ShowMirroredIconPercentage - Configure visibility of mirrored parts

The set value determines, as of which percentual similarity mirrored parts shall be shown. Default is 90%.

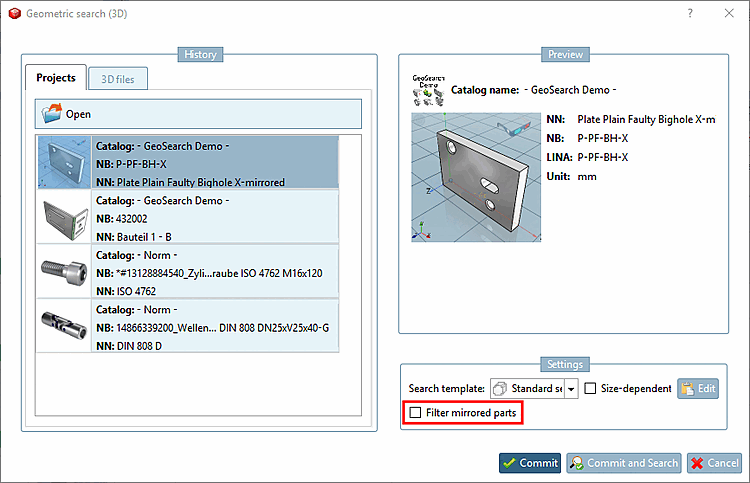

When using Geometric search (3D) you can filter mirrored parts.

If the option Filter mirrored parts is deactivated, then mirrored parts are displayed as search result and marked with a respective icon . If the option is activated, then mirrored parts are not displayed.
