1.7.5.16.9.1. Key "TopologyCatalogs" - Find topological values with Volltextsuche

The Full-text search will also find all linear dimensions from Topology in addition to the values from the characteristic attribute table. This enhancement becomes evident especially when searching in own part catalogs, because here characteristic values are not necessarily found in the table.

Hits from the topology are displayed in an own column Topology and are marked with yellow.

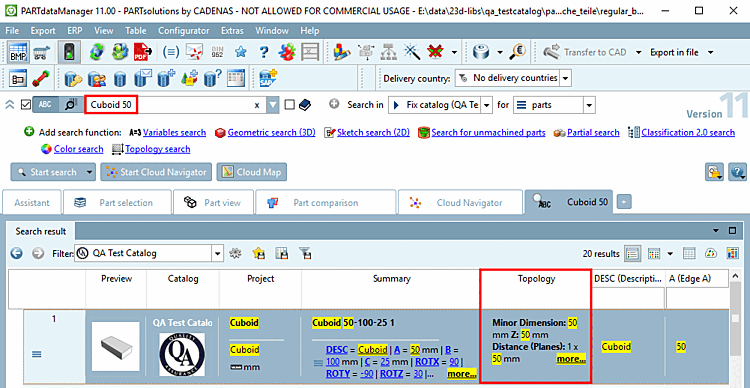

Search results with column "Topology"

Search results with column "Topology"

[Note]Note

In order to use this new functionality do the following:

  1. In the configuration file partsol.cfg, block INDEX:LUCENE, key TopologyCatalogs enter the desired catalog path in the following form:

    cat/<catalog_name>

    Example:

  2. Update the geometrical index (if not up-to-date).

    See Kontextmenübefehle im Einzelnen -> Geometrical search index -> Create/Update.

  3. Update the full-text search index.

    See Kontextmenübefehle im Einzelnen -> Create full-text search index.
