5.8.2. Catalog display: Which filter possibilities are available?
5.8.2.5.  Certified catalogs
Prev  Next

5.8.2.5.  Certified catalogs

[Note]Note

  • Certified catalogs have high component intelligence.

  • The CAD models from this catalog contain special functions like level of detail, thread information, kinematics.

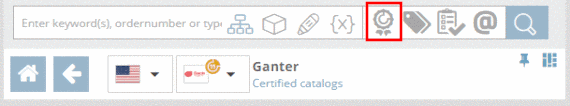

When clicking the button only certified catalogs are shown.

  • How can I recognize if/which quality seal the catalog has got?

    At catalogs with seal the respective icon is shown.

    • Gold seal

    • Silver seal

    • No seal

      No display of a seal

  • Would you like to know which features the respective catalog shows?

    1. Choose the desired catalog.

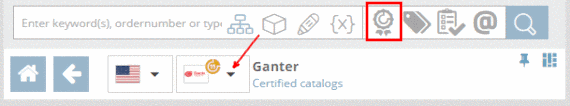

    2. In order to open information on QA seal, click on the black arrow beneath.

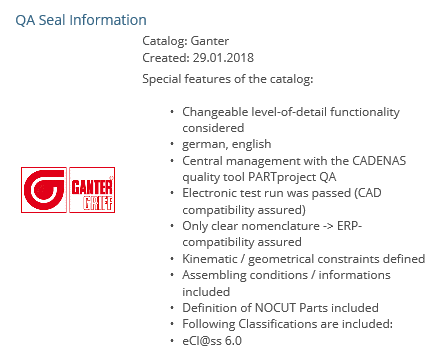

      ➝ A dialog opens with information about the QA seal.

  • Which meaning do quality seals have?

    Overview to the quality characteristics

    Gold Quality Seal

    • Available in many languages

    • Levels of detail included (LOD)

    • Central management with the CADENAS quality tool PARTproject QA

    • Electronic test run was passed (CAD compatibility assured)

    • Only clear nomenclature ➝ ERP-compatibility assured

    • Fitting spaces modelled as negative bodies (e.g. for sealings)

    • Kinematic / geometrical constraints defined

    • Assembling conditions / information included

    • Defined parts, which are not cut with 2D-derivations

    • Classified according to eCl@ss 5.1

    Silver Quality Seal

    • Central management with the CADENAS quality tool PARTproject QA

    • Electronic test run was passed (CAD compatibility assured)
