7.6.2.10.5.2. Blends in pattern

[Note]Note

  • First create the pattern, then the Blend.

  • When using the Blend feature for patterns please regard to use it on the origin geometry.

  1. Blend on origin geometry is supported.

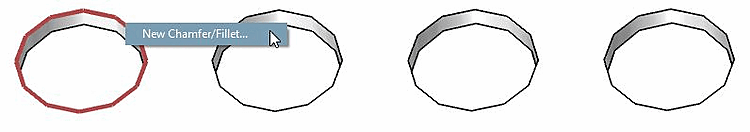

    Correct use: Command "New Chamfer/Fillet..." is displayed

    Correct use: Command "New Chamfer/Fillet..." is displayed

  2. Blend on derived pattern geometries is not supported.

    Incorrect use: Note "Face is a result of pattern feature" is displayed

    Incorrect use: Note "Face is a result of pattern feature" is displayed

  3. When following the correct procedure, the Blend feature is applied to the origin geometry and all derived pattern elements.

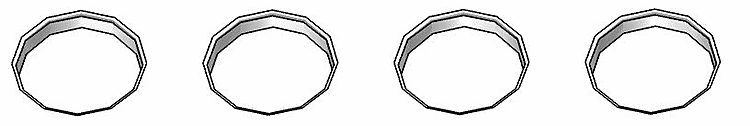

    Result

    Result

[Note]Note

For patterns, if problems occur, try both edge selection and face selection.
