2.5.1. ArchiCAD

2.5.1.1. Standard information
2.5.1.2. Additional information
2.5.1.2.1. Selection in 2D
2.5.1.2.2. Mesh export (error in mesh)
2.5.1.2.3. Embedded Library

The following integration description is valid for the following versions:

ArchiCAD 26 to 28

To insert the model into CAD in the 3Dfindit menu item, use one of the sub-items from "Insert model [Insert model]", "PARTdataManager" or "3Dfindit"

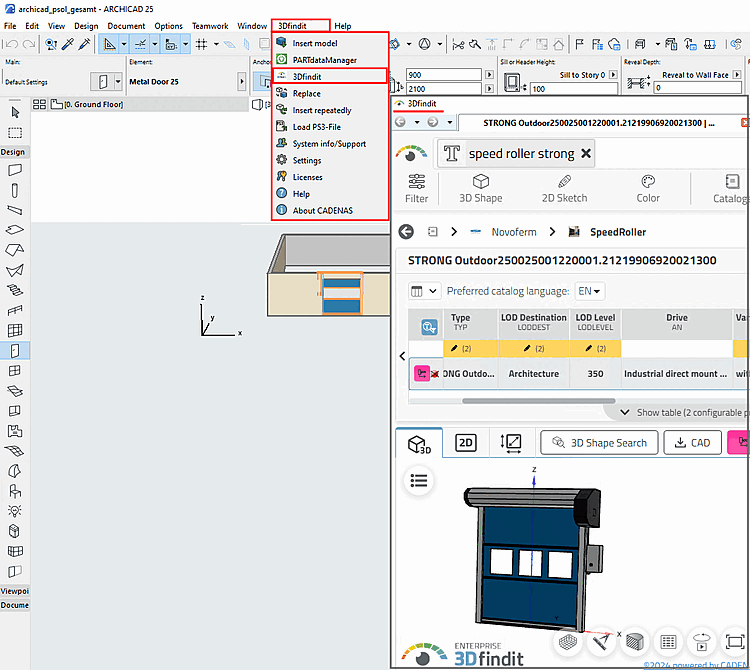

Call up 3Dfindit via menu item "3Dfindit" -> sub-item "3Dfindit" and export part to CAD

Call up 3Dfindit via menu item "3Dfindit" -> sub-item "3Dfindit" and export part to CAD
