Chapter 8. Catalogs / Classifications

8.10. Catalogs | Classifications: Download via PARTupdate

Catalogs and classifications can be downloaded not only on PARTadmin, but alternatively also on PARTupdate.

Go to https://partupdate.cadenas.de.

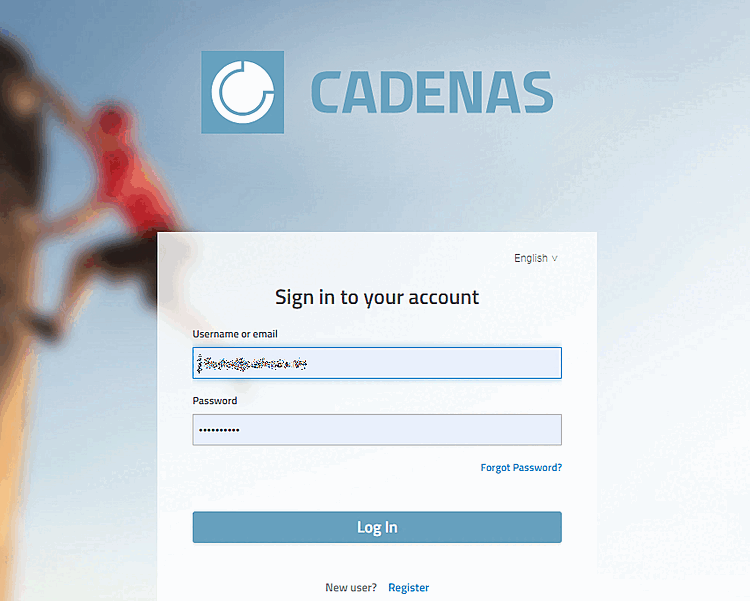

Please register.

Note

Access to PARTupdate is only possible for verified customers with valid maintenance.

For verification please send an e-mail to:

sekretariat@cadenas.de

With indication of:

Company, zip code, city, first and last name of the employee + email address used to log in . Please enter "Verifizierung der Nutzerdaten zum Katalogdownload" as the subject line.

partupdate.cadenas.de does NOT work with the PARTcommunity account.

	Note
	Prerequisites: If there are any problems, check whether `partupdate.cadenas.de` and `*.partcommunity.com` are unlocked in the firewall. If clients are to be blocked, this is usually done via the firewall. Port TCP 443 must be blocked. Encryption takes place via OpenSSL 3.0. This type of encryption allows TLS >=1.1. V12 can use TLS 1.3, V11 only TLS 1.1.

-> As soon as you are logged in, the download area will open.

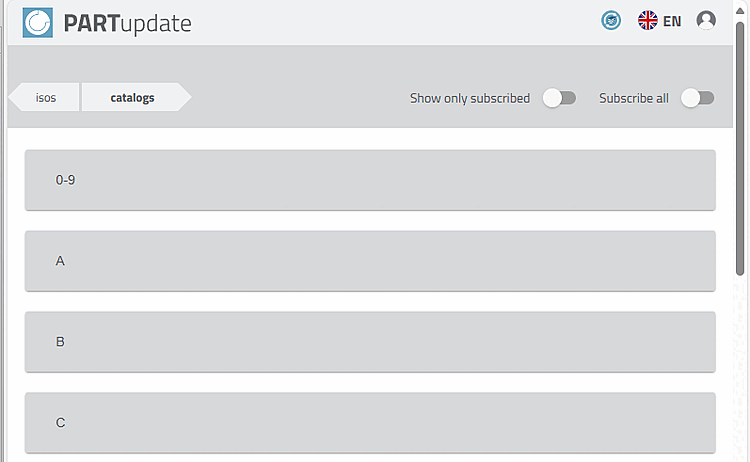

Under "isos" you will find the software, under "catalog" catalogs, classifications and thread information.
Examples:
- CNS classification: "catalogs" > "_CNS" > "Cadenas" > "Cadenas-Standard"
- Standards catalogs: "catalogs" > "_CNS_Standards" > "Industry_Standards"
- eCl@ss in all versions: "catalogs" > "_CNS" > "EClass"
- Thread information: "catalogs" > "_CNS" > "Threads"

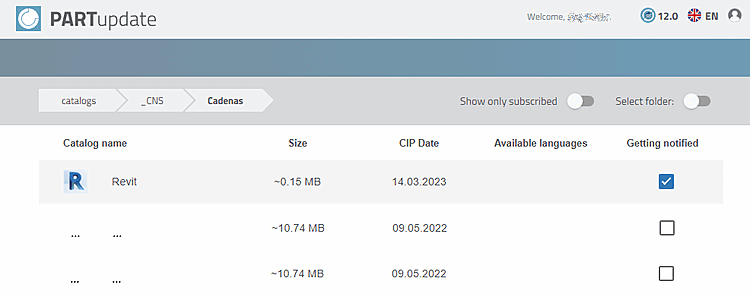

You can also be notified of changes. To do this, activate the Getting notified checkbox for the desired catalogs or classifications.

-> You will now be notified of any changes.

For installation, see Section 1.3.3.3, “ Offline catalog installation / catalog update ” in PARTsolutions Administration - Manual .
