5.12.1.8.  selectionfile

In the selectionfile parameter, you specify how the selection list for a specific variable is to be filled:

  1. Via configuration file: Enter the name of the configuration file. See Section 5.12.1.8.1, “ Fill list field via configuration file ”.

  2. Via VBS expression: Enter a VBS expression in square brackets "[ ]". See Section 5.12.1.8.2, “Fill list field via VBS expression”.

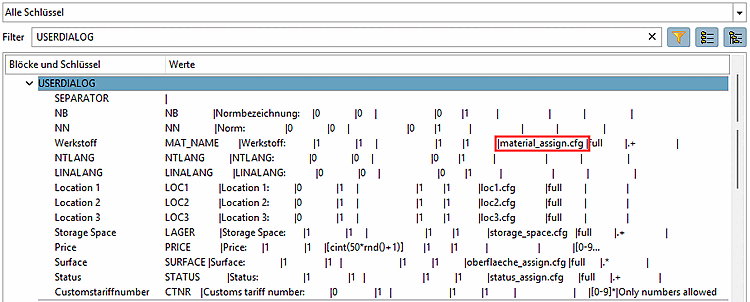

The illustration shows an example of the configuration file "material_assign.cfg" for selecting the material.

The illustration shows an example of the configuration file "material_assign.cfg" for selecting the material.

The following illustrations show the dialog New identification number [new ident-no.], which can be found after clicking on Add Record to Link Database [Add dataset to link database] ( 3Dfindit ) / ( PARTdataManager ).

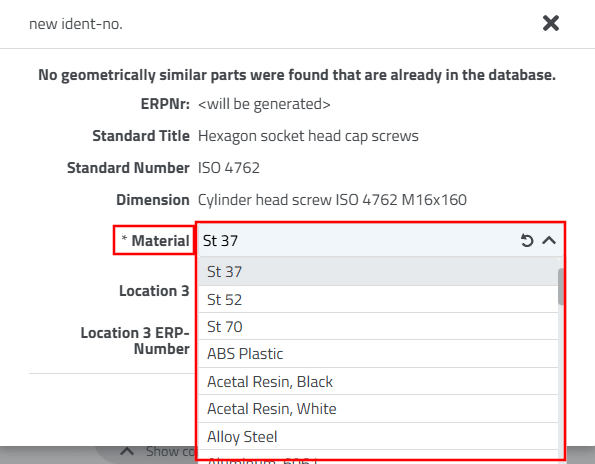

Example 3Dfindit

Example 3Dfindit

Example PARTdataManager

Example PARTdataManager
