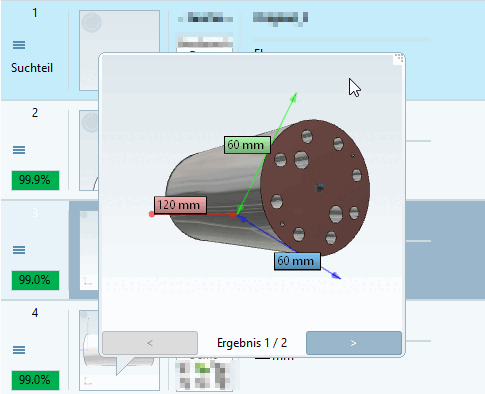

Example: Selection of the top face at a flange with several holes.
In order to detect the hole pattern, the option Inner contours has to be enabled. With this approach hole type (e.g. "tapered") and hole depth (part length) remain undefined.
Alternatively you can directly select the holes.
In this case hole depth and hole type is also defined in addition to hole pattern, so that more specific results will appear.
