2.6.1.  Insert from the standard and purchased parts library via "Insert model"

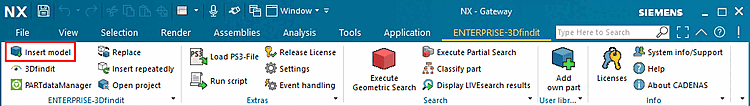

Insert model (the illustration shows NX as an example)

Insert model (the illustration shows NX as an example)

If no application has been started yet, the ENTERPRISE 3Dfindit client starts, if this is not possible, PARTdataManager starts; if an application is already running, the user is asked whether he wants to start 3Dfindit or PARTdataManager.

Also see Section 2.6.2, “ Insert from the standard and purchased parts library via "PARTdataManager"” bzw. Section 2.6.3, “ Insert from the standard and purchased parts library via "ENTERPRISE 3Dfindit" ”.

[Important]Important

Custom parts can no longer be placed via this dialog since v12.10, as they come via the PLMsynchro database and have no classified connection points.
