5.1.4.2.3. Direct online linking of the LinkDB to the ERP-DB

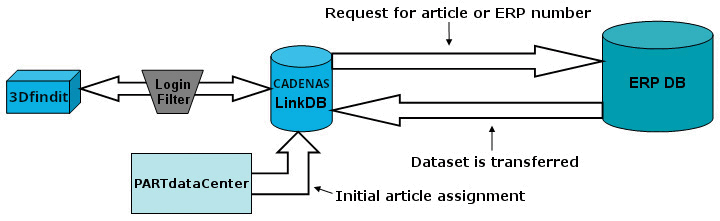

  • With regard to ERP data, only the article no. or ERP no. of the respective part is entered in the LinkDB

  • The required data set is only retrieved from the ERP database when the user requests it in ENTERPRISE 3Dfindit

  • PARTdataCenter is required for the initial filling.

  • Advantage: Complete data record is always imported from the ERP database in real time

  • Disadvantage: Calling can take longer with a large number of displayed parts

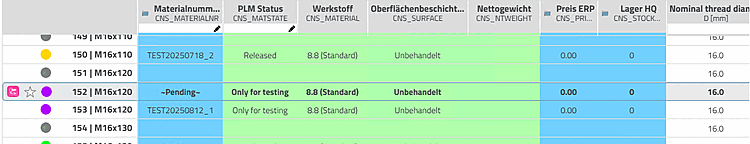

The following screenshot shows an example:

  • It is possible to display any useful information in 3Dfindit as an additional column.

  • The direct online query as a linkage method is the most timely query option and the most effective in the case of a stock query. The other linking methods can of course also display the data.

  • The ENTERPRISE 3Dfindit user sees the fields that are important to him for decision-making.
