8.3.3. How can I perform a geometric search based on an uploaded part of my own?

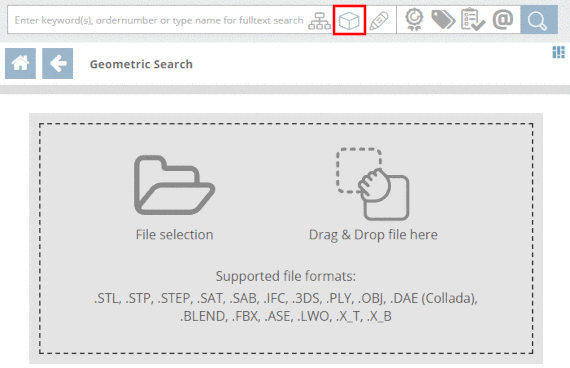

  1. Click on the icon Geometric Search.

  2. Click in the dialog area.

    (Alternatively, drag and drop the desired file into the dialog area).

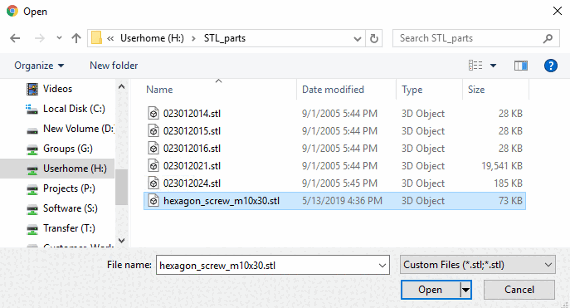

  3. Select the desired file in the Explorer. Then click Open to upload the file.

    ➝ The uploaded part is displayed.

  4. Click on Search.

    ➝ The search is carried out across all existing catalogs and the results are listed. The geometric similarity is displayed as a percentage for each search result.
