4.4.4.2. More examples / notes

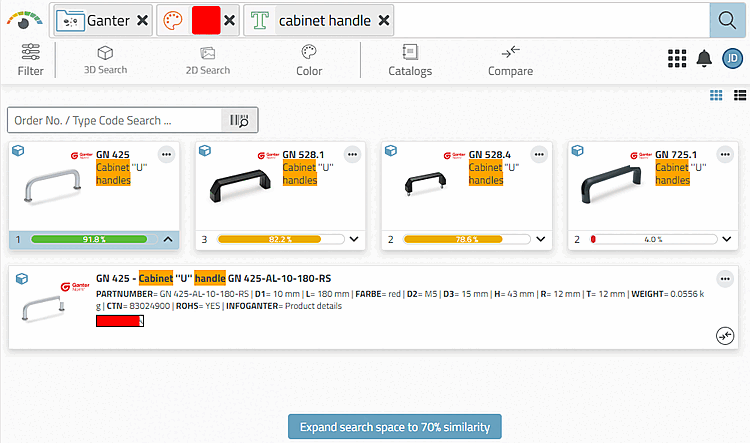

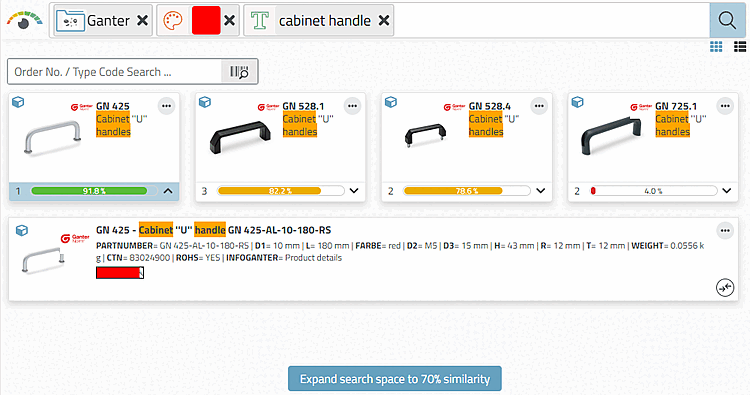

  • The preview image could be differing.

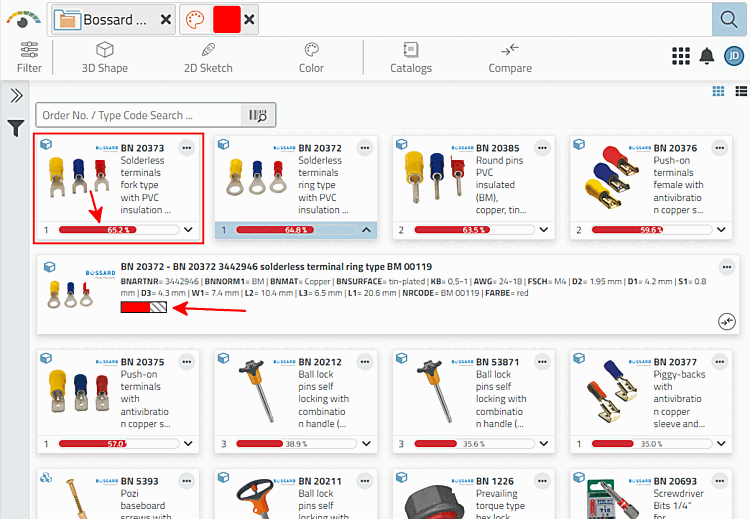

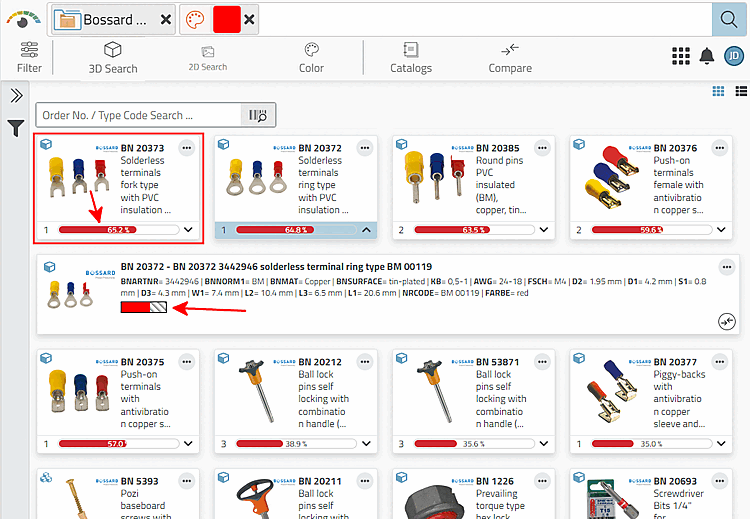

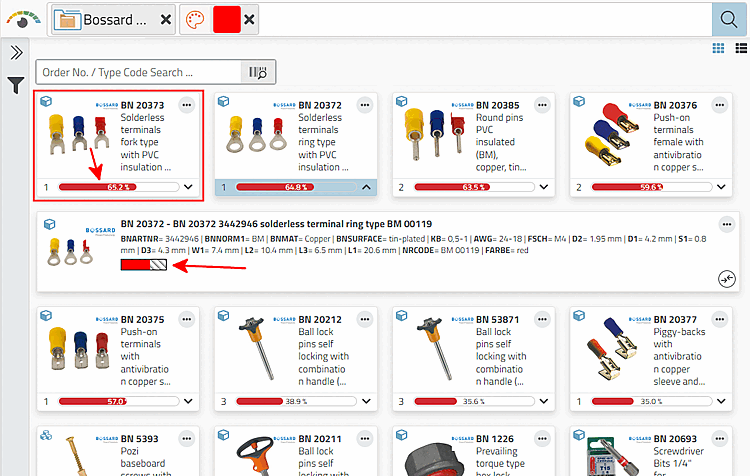

    In the preview image on the bottom right, click on the black arrow .

    -> The color bar shows the accordance to search color.

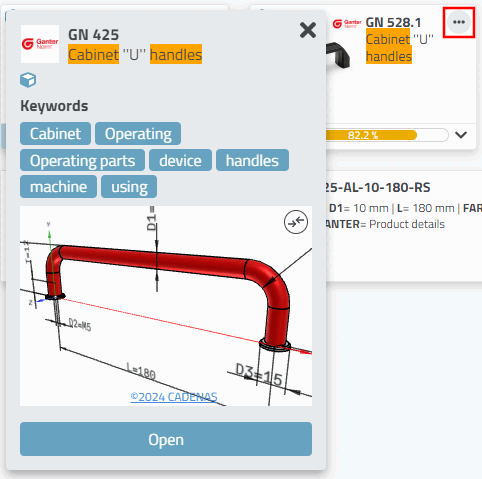

    Open the preview by clicking on the icon .

    -> The part found is red.

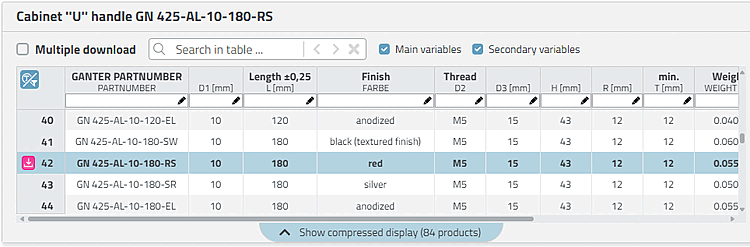

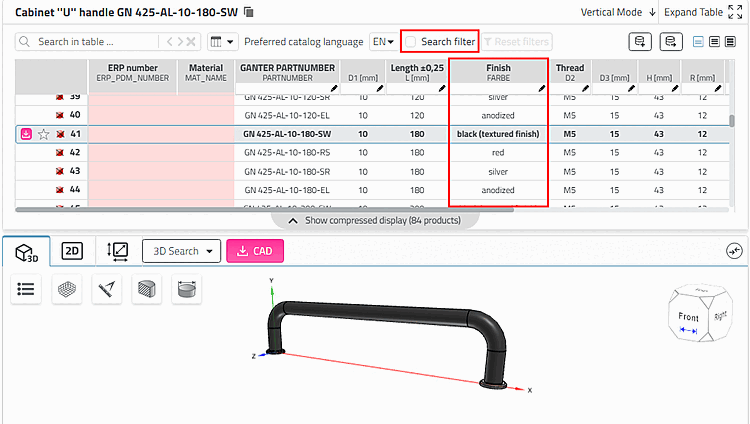

    In the opened table you will see other lines, where the part is offered in different colors.

  • The color bar shows the accordance between search color and real part color. Even if the color does not match exactly, you will get hits; only the percental similarity is smaller.

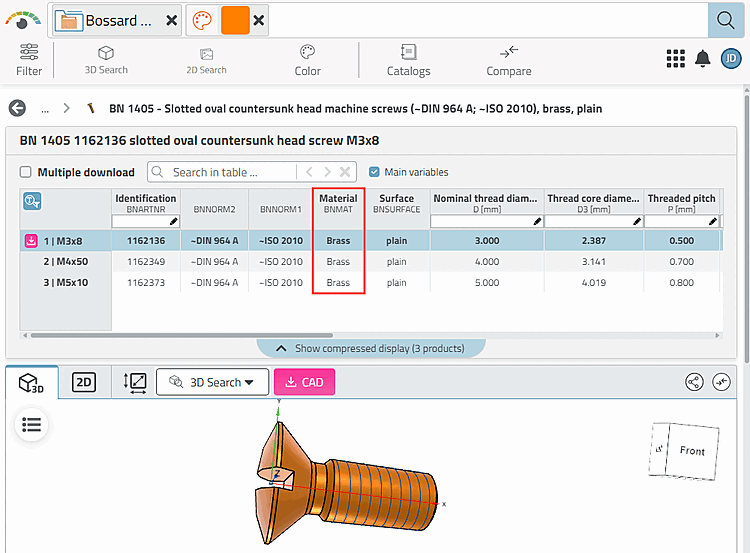

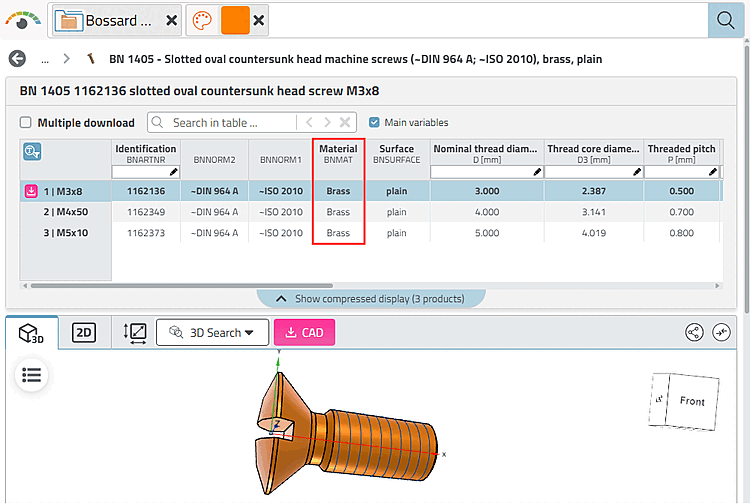

  • Brass screws, for example, will be found with orange color.

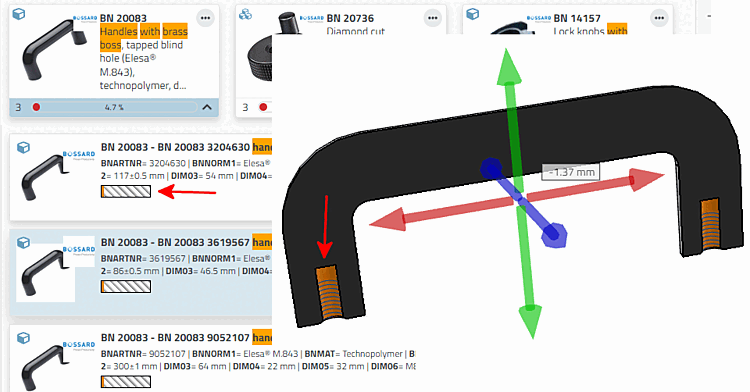

  • Sometimes only a look inside the part reveals why a hit was made.
