5.4.
Dimensioning views / 2D derivation
To be able to insert 3D components/assemblies from PARTsolutions into a 2D CAD system, create a 2D derivation of the 3D object.

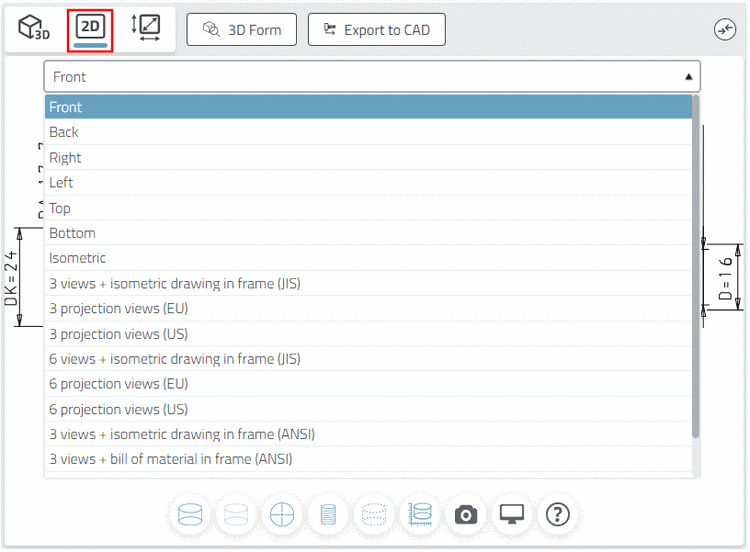

Click on the 2D icon
.

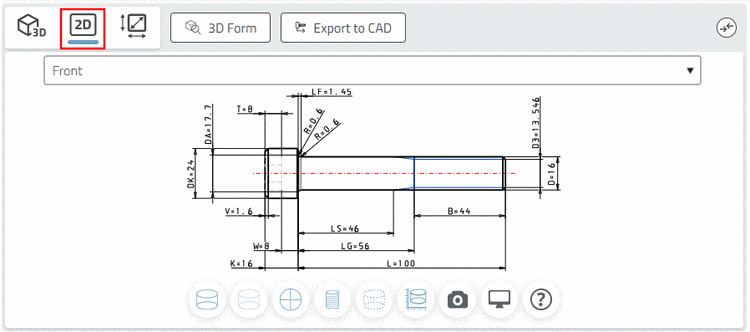

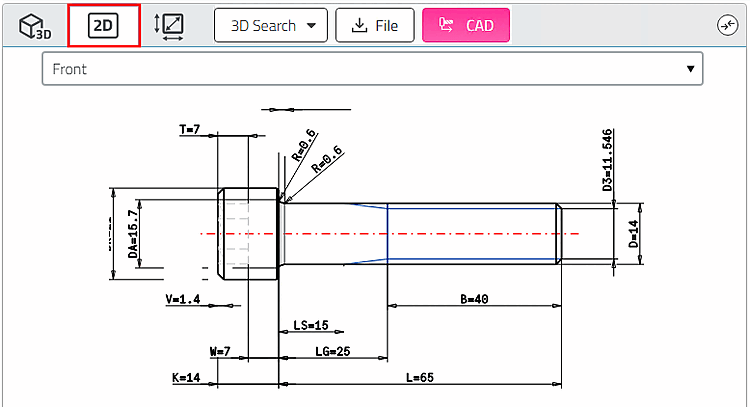

-> The 2D views are loaded.

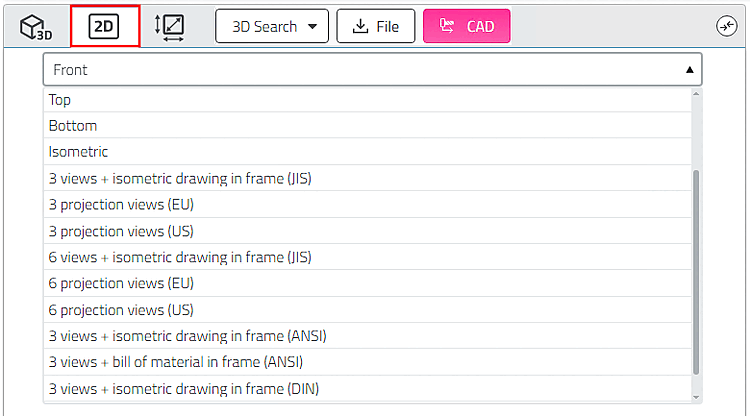

Select the desired derivation in the list field.
Click on the Export to CAD button.

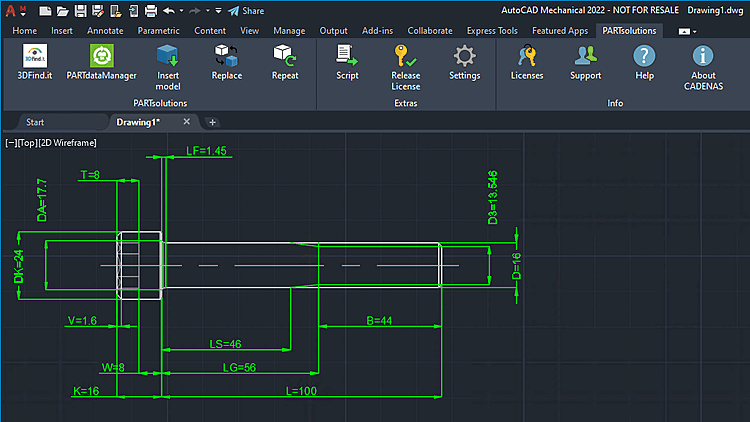

-> The 2D derivation is opened in 2D CAD.
