12.1. How can I send the selected CAD model to my e-mail address and import it into the CAD system?

  1. Under Formats -> Add formats [Selected formats], select at least 1 format in the Email section. It will be displayed under your selection.

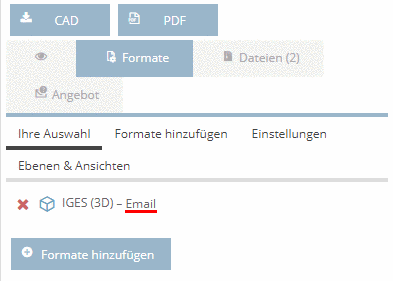

    Example: Selection of IGES (3D)

    Example: Selection of IGES (3D)

  2. Make sure that the desired part is specified in the table view (and also in the variable view if value range fields are available).

  3. After clicking on CAD or Generate CAD MODEL, you will automatically receive an e-mail with the required formats packed in a zip file.

    (Depending on the portal settings, information is displayed in the download area).

  4. Temporarily save the zip file received by e-mail to a location of your choice.

  5. Unzip the files with WINZIP or a similar program.

  6. Import the file (files) into your CAD system.
