5.2. Function

5.2.1. Call from PARTdesigner

	Note
Have you already modeled components with eCATALOGsolutions in previous versions? Then you will immediately notice a fundamental innovation. With V11, the PARTeditor module has been integrated into the PARTdesigner module. All PARTeditor functions are now available in PARTdesigner so that annoying switching between different work surfaces is no longer necessary. You already know comfortable working with docking windows, which you can adjust in size and position, from PARTdataManager. This functionality is now also available in the PARTdesigner is now also available. Even if you are working in one single user interface - which is more comfortable - be aware of the following facts: A parametrically structured 3D model is created. This data is also saved in the 3db file type. And a feature table is created, the values of which are used to fill the parametric 3D model. The table data is still saved in the tab or tac file type. In the Variable Manager there is a parameter Storage location [Save location] with the following list field options: Only in geometry -> data storage in 3db file Only in table -> data storage in tab/tac file In geometry and table -> data storage both in 3db file and in tab/ tac file Depending on which mode you select before clicking Apply [Commit], the data is saved in the corresponding file type or in both.

Note

Have you already modeled components with eCATALOGsolutions in previous versions? Then you will immediately notice a fundamental innovation. With V11, the PARTeditor module has been integrated into the PARTdesigner module.

All PARTeditor functions are now available in PARTdesigner so that annoying switching between different work surfaces is no longer necessary. You already know comfortable working with docking windows, which you can adjust in size and position, from PARTdataManager. This functionality is now also available in the PARTdesigner is now also available.

Even if you are working in one single user interface - which is more comfortable - be aware of the following facts:

A parametrically structured 3D model is created. This data is also saved in the 3db file type.
And a feature table is created, the values of which are used to fill the parametric 3D model. The table data is still saved in the tab or tac file type.
In the Variable Manager there is a parameter Storage location [Save location] with the following list field options:
- Only in geometry -> data storage in 3db file
- Only in table -> data storage in tab/tac file
- In geometry and table -> data storage both in 3db file and in tab/ tac file
Depending on which mode you select before clicking Apply [Commit], the data is saved in the corresponding file type or in both.

	Note
	When creating a model, you generally have the option of creating the model first (with fixed values or a single "prototype" table row) or the characteristic attribute table first. See also Section 7.8.11, “ Storage location: Only in geometry \| Only in table \| In geometry and table ”.

To edit the geometry or PARTdesigner to edit the geometry or characteristic attribute table, proceed as follows:

Editing the geometry

Select in PARTproject under Project selection, select the file *.3db / *.3gb.
-> In PARTproject a corresponding preview appears in the Edit project dialog area.

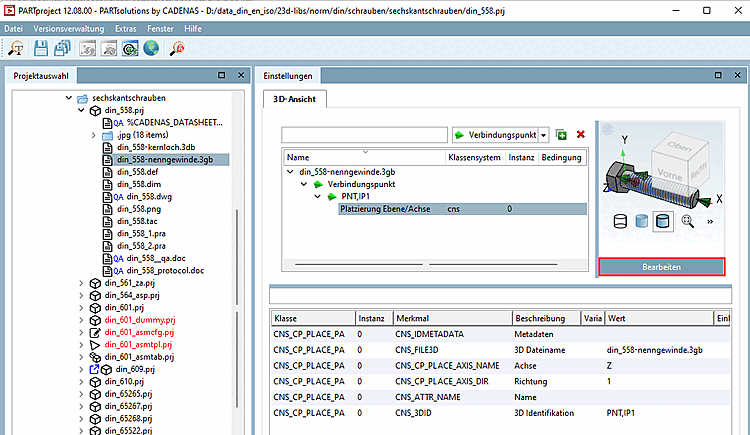

PARTproject geometry preview
Click on the Edit button.
-> PARTdesigner is opened in the geometry view.

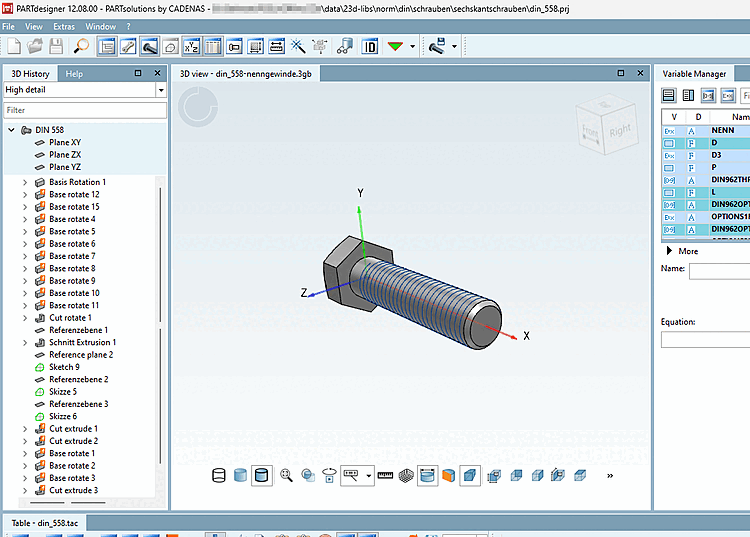

PARTdesigner geometry view

	Note
If the file still has no content, the Edit file dialog box appears. You are asked whether the .3db file shall be created. Use variable from table* If required, check the Apply variables from the table [Use variable from table] radio button so that the variables created in the tab/tac file are applied and confirm with OK.

Note

If the file still has no content, the Edit file dialog box appears.

You are asked whether the *.3db file shall be created.

Use variable from table

If required, check the Apply variables from the table [Use variable from table] radio button so that the variables created in the tab/tac file are applied and confirm with OK.

Editing the table
1. Select in PARTproject under Project selection, select the file *.tab / *.tac.
  -> In PARTproject a corresponding preview appears in the Edit project dialog area.

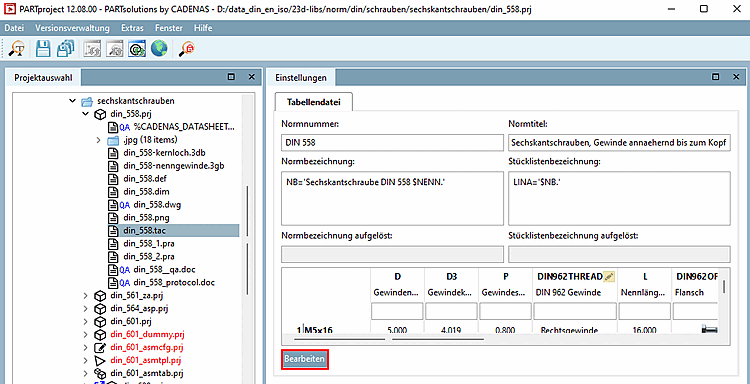

  PARTproject table preview
2. Click on the Edit button.
  -> PARTdesigner is opened in the table view.

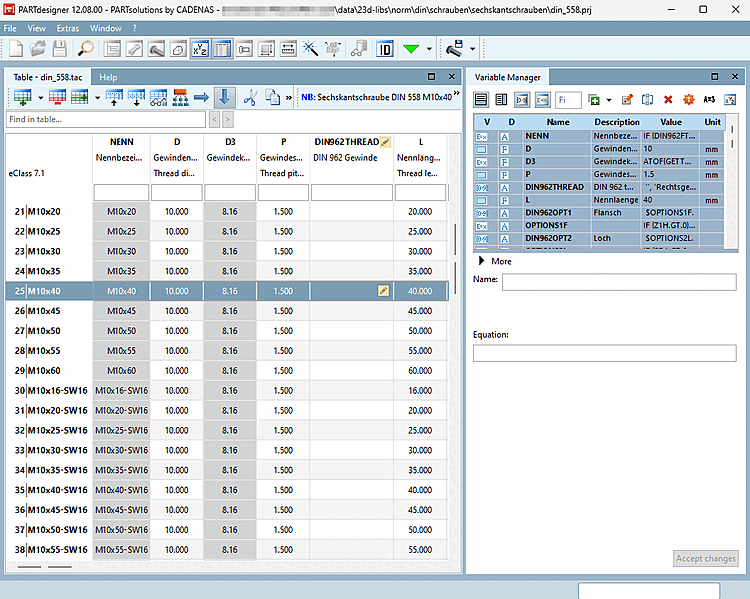

  PARTdesigner: Table view

	Note
	A detailed description of PARTdesigner can be found at Chapter 7, PARTdesigner .
