Unzip the file zip_sales_offline_12.<version>.<buildno>.zip.

Adjust the start.env (in particular CADENAS_DATA).

[ENVIRONS]
#!
CADENAS=%DirOfThisFile%
#!
#CADENAS_DATA=$CADENAS/../data

CADENAS_DATA=D:\data

#!
CADENAS_SETUP=$CADENAS/setup
#!
CADENAS_DEFAULTUSER=$CADENAS_SETUP/user/default_user
#!
CADENAS_USER=$CADENAS/../user
#!
CADENAS_LICENSE=$CADENAS_SETUP/lic
#!
CADENAS_SITESETUP=$CADENAS/../sitesetup

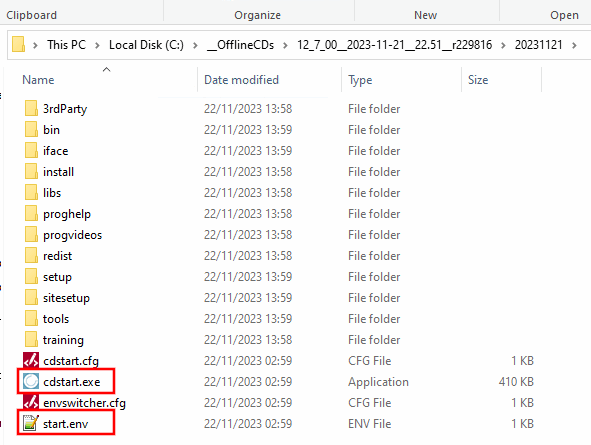

Open the start screen by clicking on cdstart.exe.

Catalog installation

In order to be able to work with the PLDBDEMO link database, the standard catalogs have to be installed. Here, in different subdirectories, demo dataset can be found which have LinkDB links:

If your DATA directory does not contain standard catalogs, install them now.

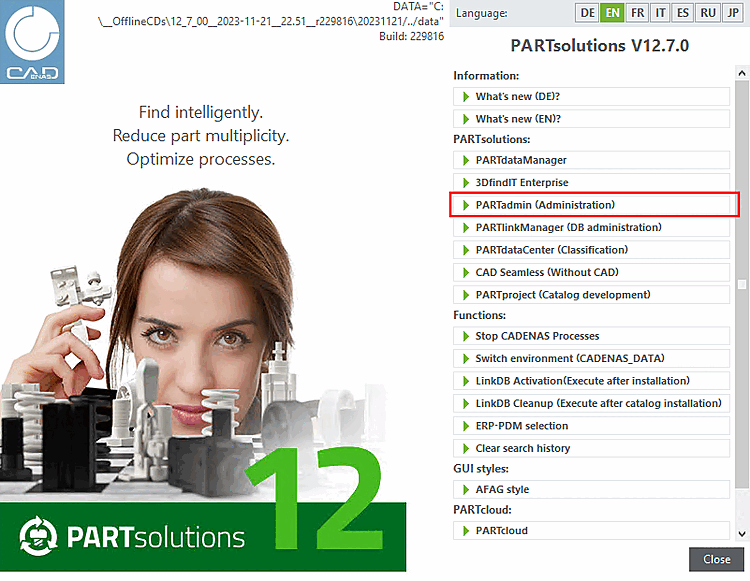

To do this, start PARTadmin (administration) and select the category Catalogs -> Update -> Online.

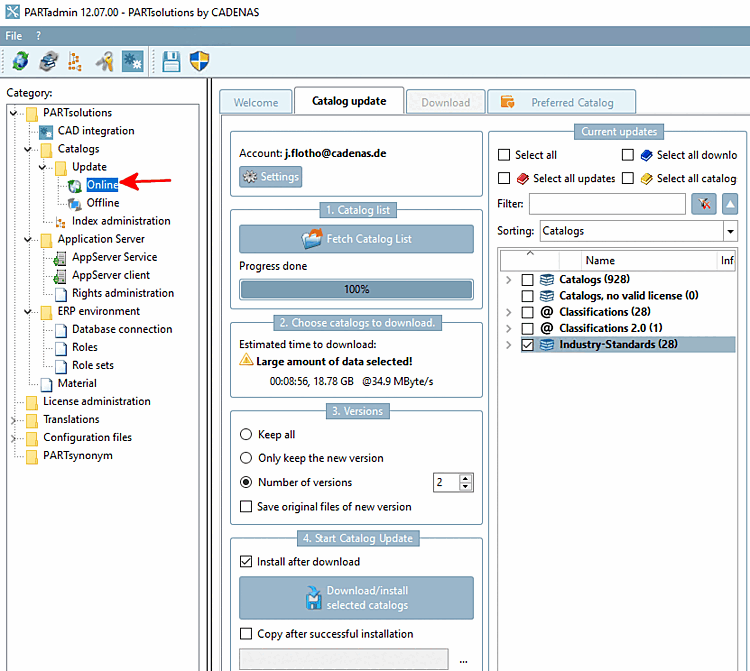

PARTadmin -> Catalogs -> Update -> Online

Set up your account, select Standards/Industry Standards and click Download/Install Selected Catalogs [Download/install selected catalogs].

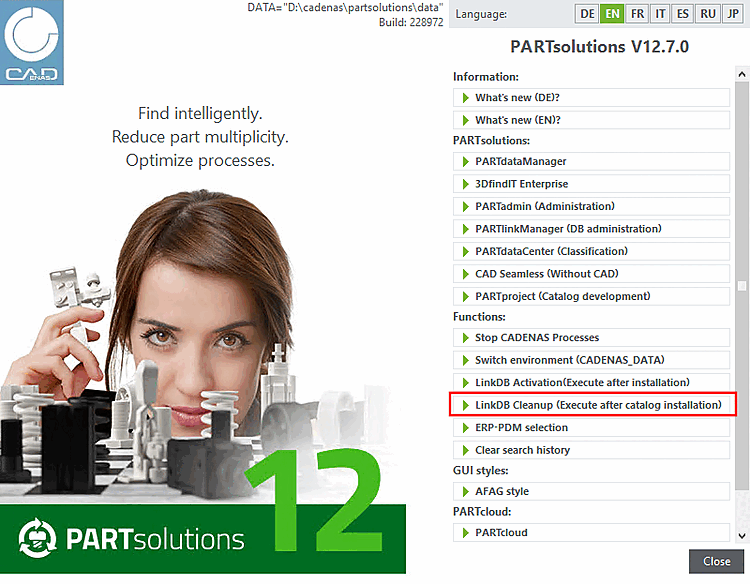

Execute the command LinkDB Cleanup (Execute after catalog installation) after the catalog update.

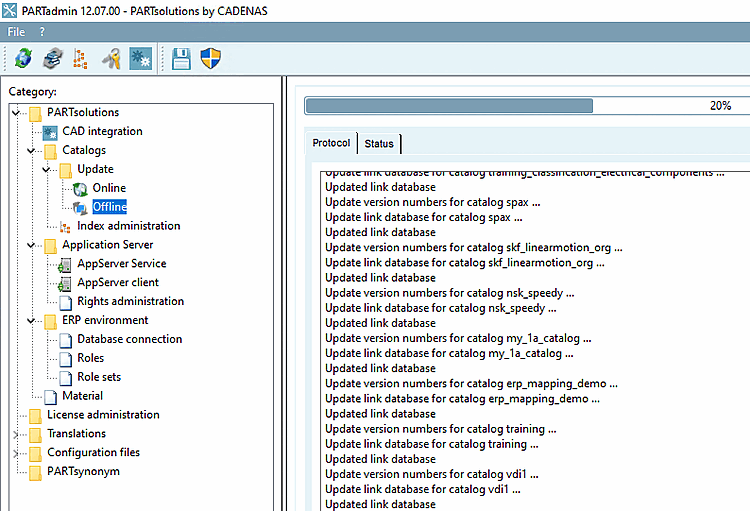

-> PARTadmin is opened and the version numbers and link database are updated. Depending on the size of the catalog, the process may take a few minutes.
