2.3. Function test of the PARTsolutions interface - activation / deactivation

Are the dialogs for interaction available?

Should the PARTsolutions menu not be available, you may have forgotten to integrate the respective interface during the PARTsolutions installation.

  • Check whether the interface was saved under "$CADENAS\iface\"cadname".

  • Check in PARTadmin under CAD integration whether the integration is activated.

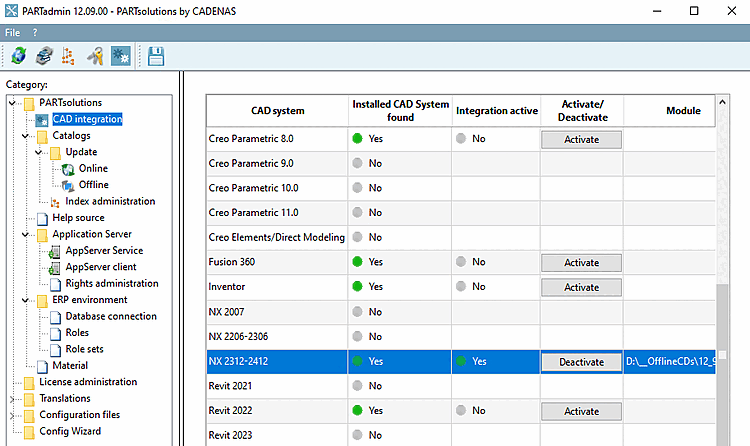

    Example: The interface of "NX 2312-2412" is activated.

    Example: The interface of "NX 2312-2412" is activated.

    [Note]Note

    If several CAD systems are combined in one line, they are ALL activated/deactivated together using the Activate/Deactivate button. There is only ONE integration for the combined CAD versions.
