3.3.6.1.  Templates

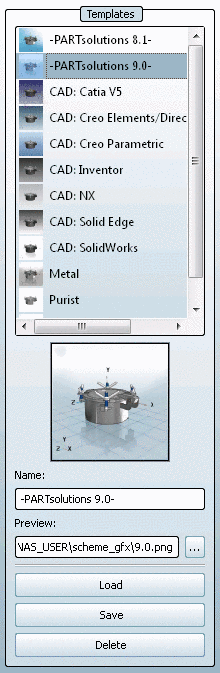

The Templates dialog area is described below.

  • Different templates have already been configured and are available for selection: 8.1, 9.0, CAD: CATIA V5, etc.

  • Below the selection, the preview image of the marked template is displayed.

  • Select a desired template and click Load.

    Make changes and click Save.

  • In order to create a template, do the following:

    • Select an existing template that is most similar to your idea.

    • Configure the template on all tabbed pages.

    • Enter the desired name [Name] under Name.

    • Use Browse ... to load the desired preview image.

    • Click Save.

  • Use Delete to remove templates.

    [Note]Note

    If you delete the template you may never retrieve it!
