5.1.4.2.2. Online replication

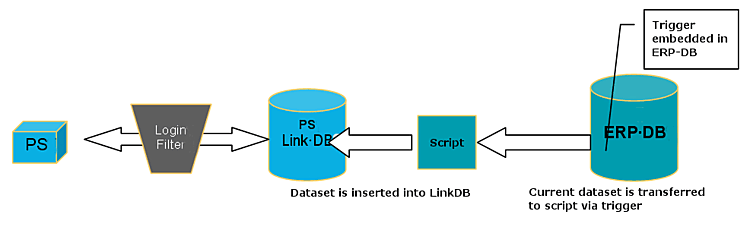

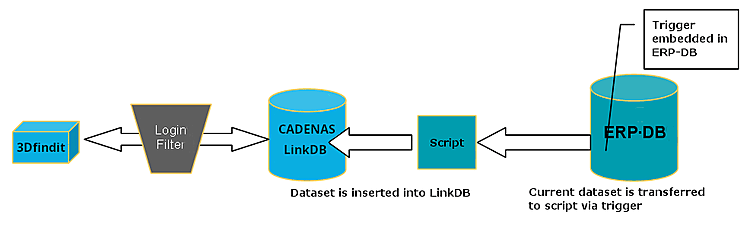

  • In the ERP system or PDM system, which also performs ERP tasks, a trigger (SAP: BAPI) ensures that the data changes are transferred to ENTERPRISE 3Dfindit

  • The trigger starts a script with the dataset to be updated; the dataset is inserted into the LinkDB.

  • Triggers must be written specifically for the existing ERP system

  • Advantage: data synchronization almost in real time

  • Disadvantage: Trigger must be implemented individually in the ERP system
