5.12.12.10.1. Accessory parts in eClass Advanced
5.12.12.10.1.1. Set links to accessory parts in PARTsolutions

The handling of accessory parts in eClass Advanced provides the basic concepts for the CNS classification system. Because of this we will have a detailed look on it.

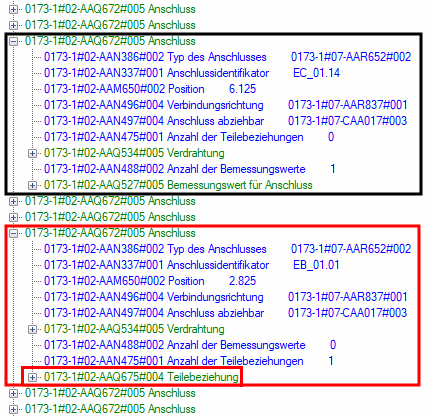

Typical example of accessory parts in eClass Advanced: The first marked connection (black) has no potential accessory parts. This is in contrary to the second connection (red), whose accessory parts are specified in the subfolder "AAQ675"" [Part relation/Teilebeziehung].

Typical example of accessory parts in eClass Advanced: The first marked connection (black) has no potential accessory parts. This is in contrary to the second connection (red), whose accessory parts are specified in the subfolder "AAQ675"" [Part relation/Teilebeziehung].

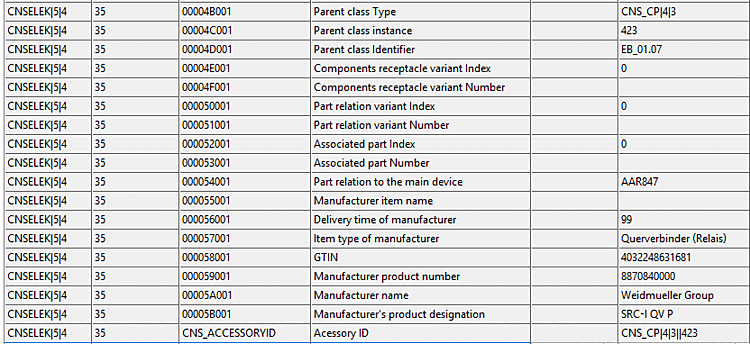

Representation of above situation on the side of CNS classification: Data in the class "CNSELEK|5|4" both contain eClass data (see above) and the "bookkeeping", which links the eClass tree structure with the usual PSOL accessory logic (see below).

Representation of above situation on the side of CNS classification: Data in the class "CNSELEK|5|4" both contain eClass data (see above) and the "bookkeeping", which links the eClass tree structure with the usual PSOL accessory logic (see below).

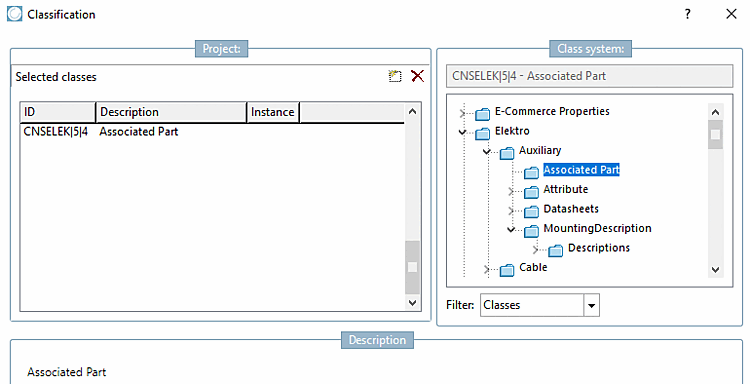

Dialog box Classification -> Class "CNSELEK|5|4" - Description "Associated Part"

Dialog box Classification -> Class "CNSELEK|5|4" - Description "Associated Part"
