5.12.5.3. Classifying own parts

5.12.5.3.1. Value take-over from the Measure dialog window

Classify My parts in PARTdataManager.

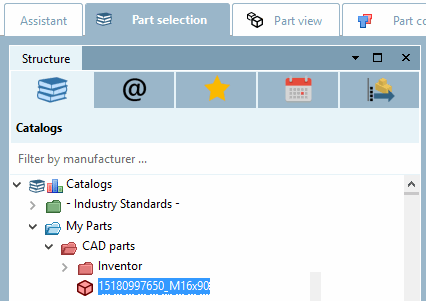

My parts

My parts

  1. In PARTdataManager, open a native part.

  2. In the Table menu, click on Edit.

    [Note]Note

    The menu command is only available for native parts!

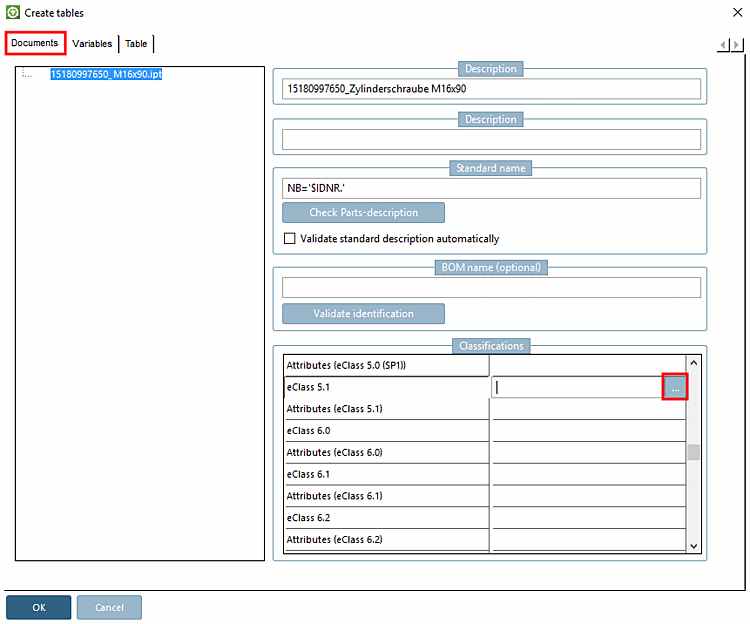

    -> The dialog box Create tables is opened.

  3. Select the tabbed page Documents.

  4. Click on the browse button ... of a classification.

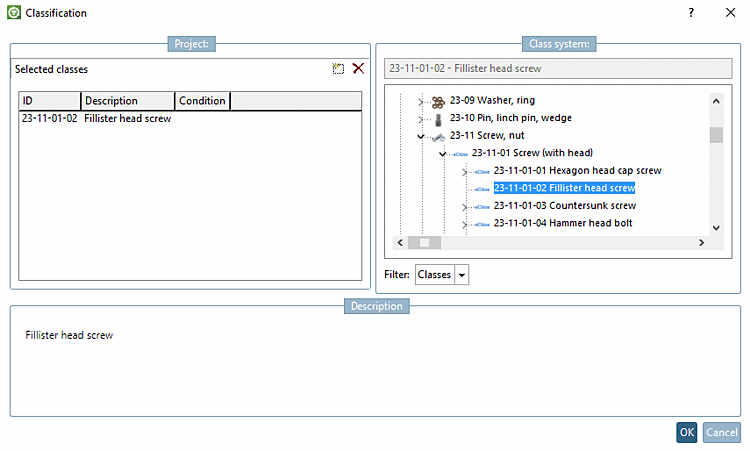

    -> The dialog box Classification is opened.

  5. Determine the desired class.

    The process is as described above (see Section 5.12.5.1.1.1, “ Allocate class ”).

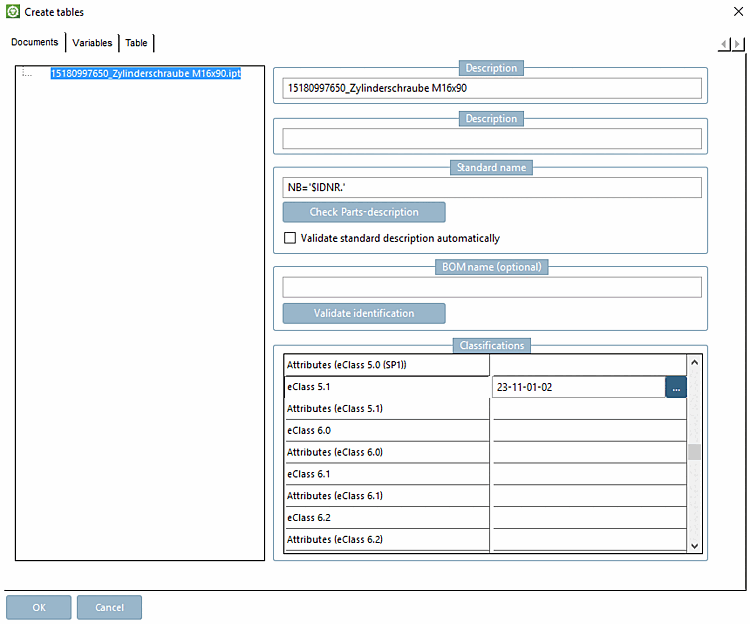

    -> Result:
