7.13.1.

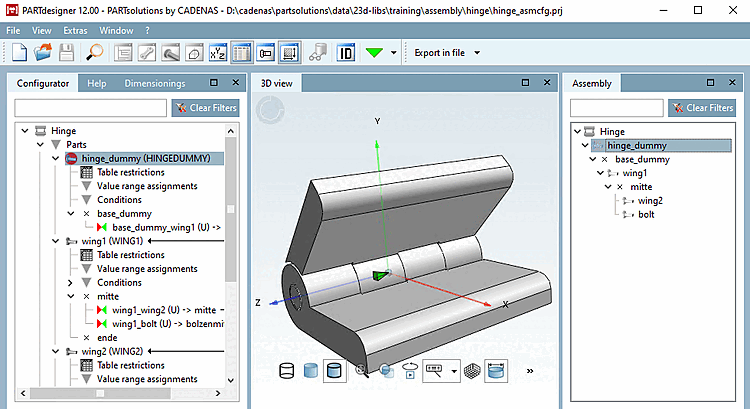

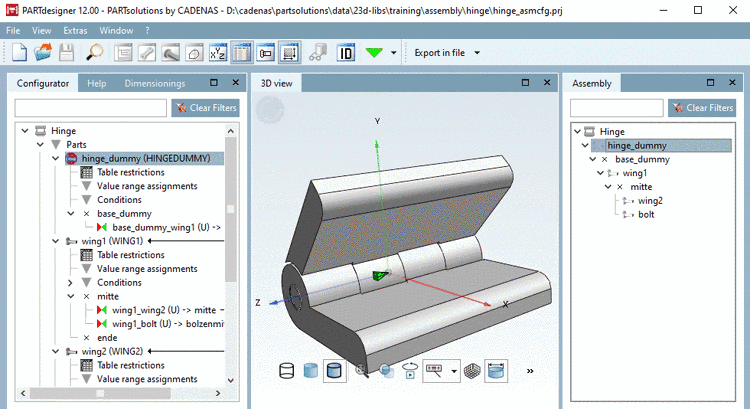

Configurator function
In the docking
window Configurator, you can build up
complex Assemblies from parts.
Parts can only be

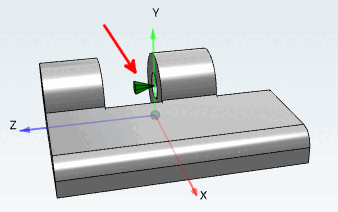

assembled if Connection points have been assigned in PARTdesigner!
Subsequently a Set of rules is created in the Configurator, which connects the parts by means
of Connection points.
The set of rules
states...
...which connection parts will be available for
the Start element in PARTdataManager,
...at which
points these parts can be added to the start element and among each
other
...and how the
corresponding table should be dimensioned.
