5.12.14.1.2. Class "CNSPIPECONNECTOR_ROUND"

Listing of all attributes with possible values

Metadata: remains empty
3D Filename: Entry happens automatically (when setting via "Published Elements")
3D Identification: Entry happens automatically (when setting via "Published Elements")
Pipe Connector On Mainline: Connection on mainline or not (list field selection)
- Branch
- Main pipe
Pipe Connector Discipline:
- Piping: Utility lines for transport of gases and liquids like water, oil, or similar
  Important is the capacity or the inner diameter
  Statement of pipe thickness in schedule number
- Tubing: Empty tubes
  Important is the outer diameter (nominal dimension based on the outer diameter)
  Statement of tube thickness in mm or inch
- HVAC: Heating, Ventilation and Air Conditioning - Air ducts
- Conduit: Cable duct
- Electrical: Electricity supply
Pipe Connector Function: Flow direction of medium or fastening
- E = Inlet of a medium
- A = Outlet of a medium
- U = Undefined medium flow direction
- B = Fastening connection (e.g. to fasten burners to boilers)
Pipe Connector Designation: Kind of use of connection
- System (=Gobal):
- Supply
- Return
Note
If not specified, ideally, value "Global" should be used (to avoid problems if flow direction is changed).
Pipe Connector ISOGEN Code: ISOGEN code for the part (4 letters)
Reference Guide: https://docs.hexagonppm.com/reader/0lruBS_9RMe3GCYewUDFLw/jzNMOLyC0egjVBNRXD5wrg
Between ISOGEN Code and VDI Form Code there are some overlaps.
Pipe Connector VDI Form Code:
Between ISOGEN Code and VDI Form Code there are some overlaps.
Pipe connection forms
For pipes, the following connection forms are distinguished by means of appropriate codes (the zero points of the connection coordinate systems lie on the connection points marked with a circle).
List field selection: e..g. NIPP, MUFF, GLAT, RUF, OVFL (see VDI 3805)

GLAT: Flat face

MUFF: Socket

NIPP: Fitting

RUFL: Round flange

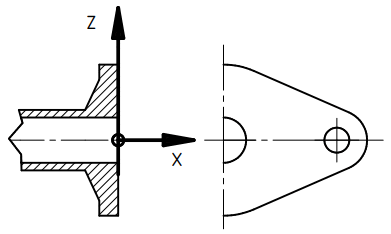

OVFL: Oval flange

ZWFL: Intermediate flange

Connection forms for air ducts
For air ducts, the connection forms are distinguished by means of appropriate codes (the connection points are marked by a small circle in each case).

LREF: Rectangular flange

LREM: Rectangular socket

LREN: Rectangular fitting

LREL: Rectangular hole fitting

LTRF: Trapezoid flange

LTRM: Trapezoid socket

LTRN: Trapezoid fitting

LTRL: Trapezoid hole fitting

LOVF: Oval flange

LOVM: Oval socket

LOVN: Oval fitting

LOVL: Oval hole fitting

LRUF: Round flange

LRUM: Round socket

LRUN: Round fitting

LRUL: Round hole fitting

PipeConnector VDI Method:

The connection method is determined by an alphanumeric code which defines the qualitative form of the active area pairing in the connection. It can be made up of, e.g., a DIN number for the type of thread or flange, combined with a pressure stage or rating provided that the latter has an impact on the form of the active area (e.g. in the case of flanges).

Note

Only identical connection methods match!

The visible indication complies with a unique token.

DIN 13-1 Metric thread	13T1
DIN 13-2 Metric fine thread	13T2
DIN 13-3 Metric fine thread	13T3
DIN 13-4 Metric fine thread	13T4
DIN 13-5 Metric fine thread	13T5
DIN 13-6 Metric fine thread	13T6
DIN 13-7 Metric fine thread	13T7
DIN 13-8 Metric fine thread	13T8
DIN 13-9 Metric fine thread	13T9
DIN 13-10 Metric fine thread	13T10
DIN 13-11 Metric fine thread	13T11
DIN 103-2 ISO trapezoidal thread, metric	103T2
EN 226 Burner connection up to72 KW	EN226KW72
EN 226 Burner connection up to 150 KW	EN226KW150
DIN 228-1 Cyl. pipe thread	228T1
DIN 405-1 Round thread	405T1
DIN 477-1 Gas cylinder thread, tapered	477T1K
DIN 477-1 Gas cylinder thread, cylindrical	477T1Z
DIN 1298 Flue connection	1298
DIN 2999 Tapered pipe thread	2999
DIN 3239 Weld stud, form B	3239
DIN 3502 Tapered pipe thread	3502
DIN 3858 Tapered pipe thread	3858
DIN 2501 Flange PN6	2501PN6
DIN 2501 Flange PN10	2501PN10
DIN 2501 Flange PN16	2501PN16
DIN 2501 Flange PN25	2501PN25
DIN 2501 Flange PN40	2501PN40
DIN 2501 Flange PN63	2501PN63
DIN 24145 Spiral pipe (plug-in connection)	24145
DIN 24193 Angle flanges Series 1	24193R1
DIN 24193 Angle flanges L Series 2	24193LR2
DIN 24193 Angle flanges FL Series 2	24193FLR2
DIN 24193 Angle flanges L Series 3	24193LR3
DIN 24193 Angle flanges FL Series 3	24193FLR3
Ventilation frame connection SB20	LRVSB20
Ventilation frame connection SB30	LRVSB30
Ventilation frame connection SB40	LRVSB40
Conical connections (Eurotaper)	DIN3838V
DIN 2501 Flange PN100	2501PN100
DIN 2501 Flange PN160	2501PN160
DIN 2501 Flange PN250	2501PN250
DIN 2501 Flange PN320	2501PN320
DIN 2501 Flange PN400	2501PN400
DIN EN 12220 Ventilation pipe-flange connection	12220
DIN 24154 Ventilation pipe-flange connection	24154
Ventilation duct plug-in connection	LKS
Ventilation fireproof spigot/socket glued connection	LBSK
Ventilation fireproof flange connection	LBF
Ventilation duct socket connection	LKST
DIN 2353 Compression fitting	LRST
DIN 2353 Compression fitting	2353
DIN 2558 Oval threaded flanges; PN6	2558
DIN 2561 Oval threaded flanges; PN16	2561
DIN EN 1254 Copper tube soldered connection	1254
Ventilation pull ring connection	LSPR
Ventilation adhesive tape connection	LKBND
DVS 2208 butt weld connection	2208
DIN EN 1092-1 Steel flanges	EN1092-1/tt/bb/PNpp
DIN EN 1092-2 Cast iron flanges	EN1092-2/tt/bb/PNpp
DIN EN 1092-3 Copper flanges	EN1092-3/tt/bb/PNpp
DIN EN 1092-4 Aluminium flanges (tt = type designation as per DIN EN 1092-1 to 4) (bb = sealing face designation as per DIN EN 1092-1 to 4) (pp = nominal pressure designation as per DIN EN 1092-1 to 4) (example: EN1092-1/01/A/PN40 )	EN1092-4/tt/bb/PNpp
DIN EN 12627 Welding ends (pp = nominal pressure designation as per DIN EN 12627)	EN12627PNpp
DIN EN 12760 Socket welding ends (pp = nominal pressure designation as per DIN EN 12760)	EN12760PNpp
DIN EN 10226 Tapered pipe thread	EN10226
DIN EN 12627 Weld stud for steel fittings	EN12627
DIN EN 1506 Ventilation pipes round, overlap connection	EN1506
DIN EN 12220 Dimensions of round flanges for ventilation purposes	EN12220

Pipe Connector Nominal Diameter: Nominal (inner) Pipe Connector Diameter, controlled by respective variable.

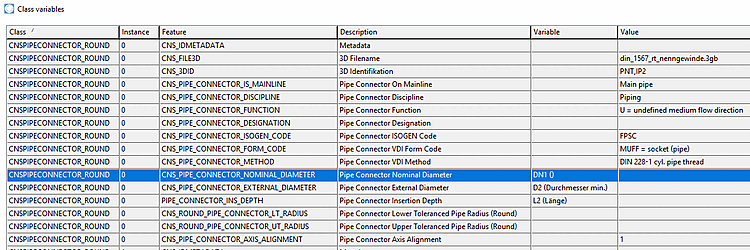

Example: Pipe Connector Nominal Diameter: Variable "DN1"
Pipe Connector External Diameter: External pipe connector diameter, controlled by respective variable

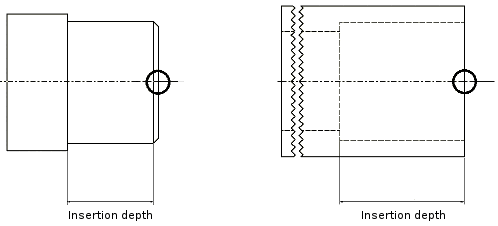

Pipe Connector Insertion Depth: Insertion depth, controlled by respective variable

Note
For the connection forms "Fitting" and "Socket" the insertion depth has to be stated.
