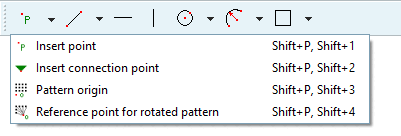

Insert point

The completely positioned point is identified in the sketch by a square frame.

Point

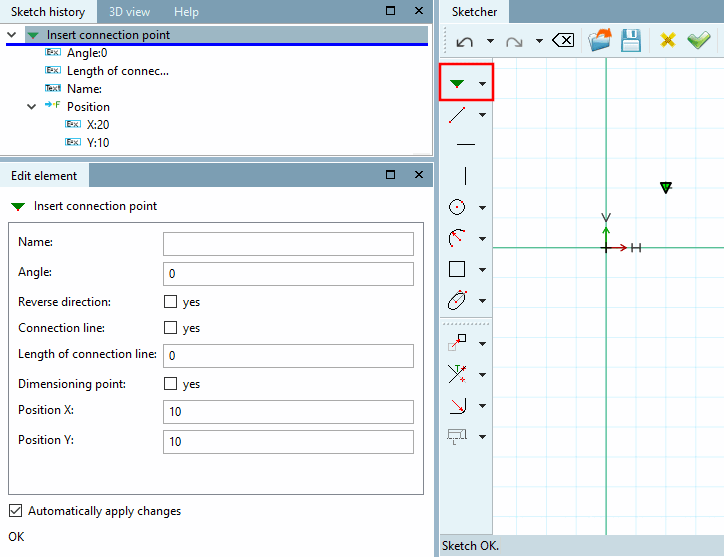

Insert connection point

The completely positioned connection point is indicated in the sketch by a green triangle.

More details can be found under:

Not selected

Selected

Pattern origin

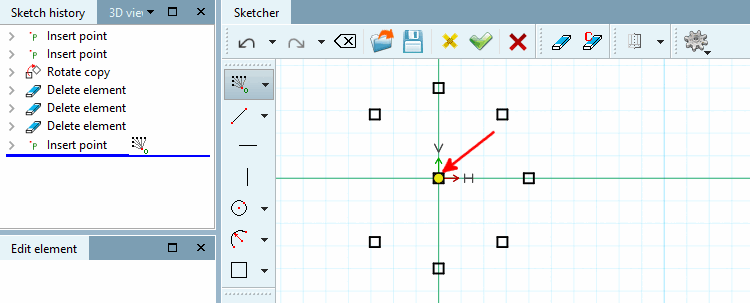

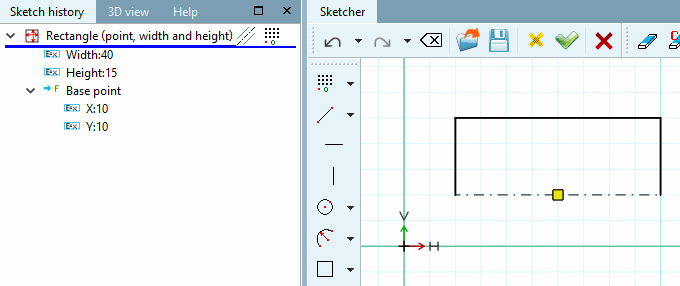

The completely positioned pattern origin is now identified by a yellow square in the sketcher.

In the Sketch history, the respective icon is shown.

The point can be removed via context menu command.

Also see Section 7.6.2.8.2, “Create pattern manually ”.

Reference point for rotated pattern

The set reference point for rotated pattern is marked by a yellow circle in the sketch.

In the Sketch history, the respective icon is shown.

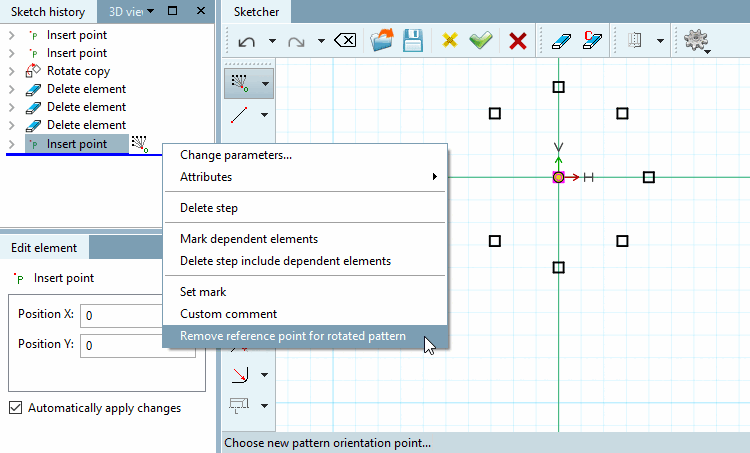

The point can be removed via context menu command Remove reference point for rotated pattern.

Also see Section 7.6.2.8.2, “Create pattern manually ”.
