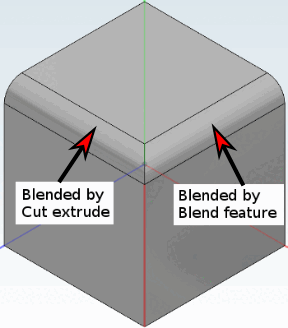

A

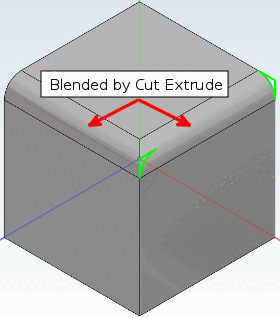

combination (two or more) of Chamfer/Fillet created by Cut extrusion (by sketch)

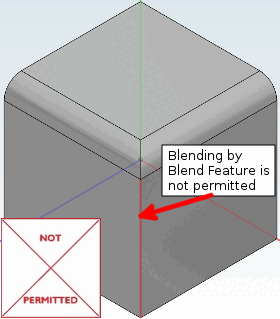

+ Chamfer/Fillet created by the Blend
feature (context menu command New Chamfer/Fillet...) may lead to

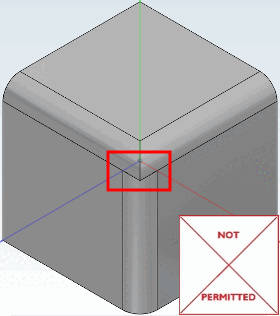

errors and has to be avoided (see following figures). Of
course, you can switch between different ways of creating
chamfers/fillets within a model depending on the installation
situation. The restriction only applies to directly intersecting
edges. |
