4.6.1.14. "Compare" index page: Section view

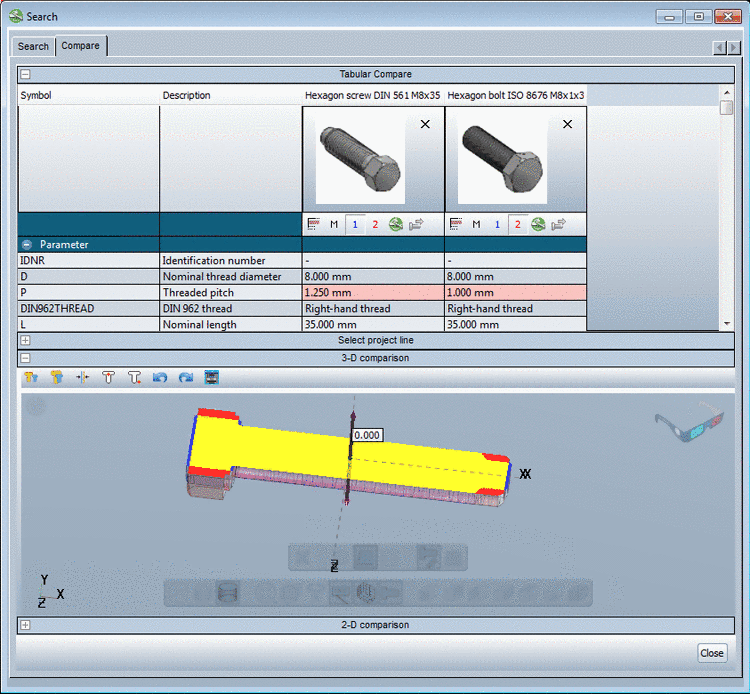

Within the section view you can optimally realize differences between parts.

Call up

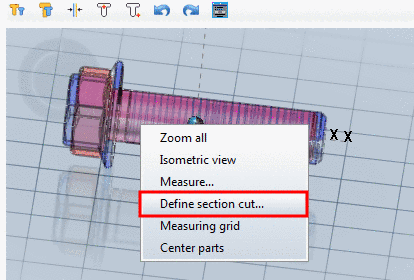

In the 3D view call up the context menu command Define section cut....

The section view appears and the respective toolbar is displayed.

Toolbar buttons

Close: The "Cut view" mode is finished, the toolbar hidden.
YZ plane
XZ plane
XY plane
Reverse cut view
Display plane

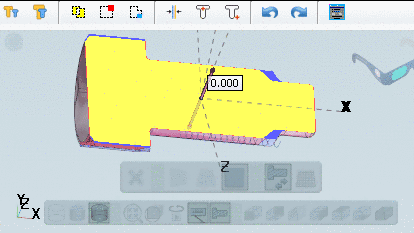

Move sectional plane

In order to move the sectional plane, to define the offset value you have the following options:

  • Click on the axis and move the cursor with pressed mouse key along the axis.

    -> The current offset value is fluently displayed.

  • Click into the display field on the axis.

    -> An input field is opened. Insert the desired value or change the value with the little arrow keys.
