2.3.8.2.2.2. Adding new keys

In the following example, a key is to be added that appears as an additional attribute under Parameter.

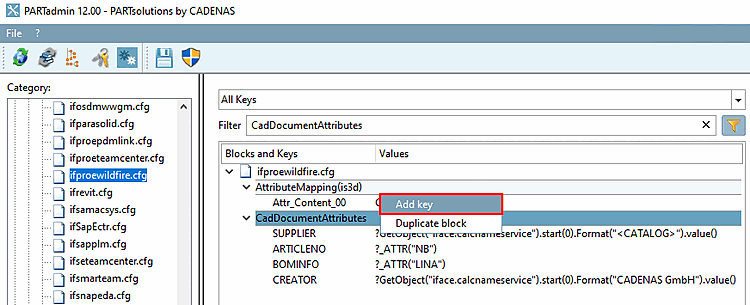

  1. Open under PARTadmin -> Category -> PARTsolutions -> Configuration files -> $CADENAS _SETUP -> ifproewildfire.cfg the block CadDocumentAttributes.

    Creo: Parameter

    Creo: Parameter

  2. Insert a key.

  3. Save the settings in PARTadmin.

  4. Export the part to Creo.

    -> The added key now appears as an additional attribute on the Parameters dialog page.

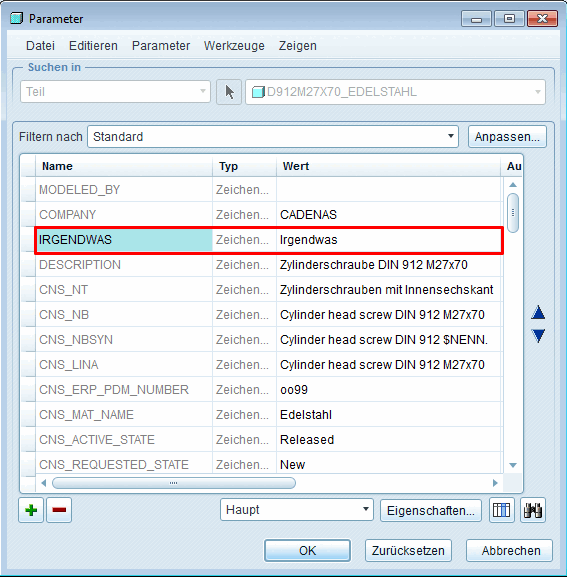

    Creo: Parameter - Extra attribute

    Creo: Parameter - Extra attribute
