1.7.8.2.3. Tweak PARTproject user interface

1.7.8.2.3.1. menustructure_PARTproject.cfg

The basic structure of the toolbar and menus is specified in this configuration file.

	Note
Normally you do not need to change these settings. The visibility of elements is controlled by menuvisibility_PARTproject.cfg.

Note

Normally you do not need to change these settings.

The visibility of elements is controlled by menuvisibility_PARTproject.cfg.

For general explanations, see menustructure_PARTdataManager.cfg.

Toolbar positions

[Tweakmenu]
toolbarOrderTop=Standard,LinkDatabase
toolbarOrderRight=
toolbarOrderLeft=
toolbarOrderBottom=

Compare menustructure_PARTdataManager.cfg.

Button layout

To customize the layout of the button display, use the setting options of the "<name>ToolbarButtonStyle " key. Compare menustructure_PARTdataManager.cfg.

Menu sequence

The key values of menuOrder represent the desired order of the individual menus.

Example for menu order

Menu name	Action name
File	FileMenu
Versioning system	QAMenu
ERP	ErpMenu
Extras	ExtrasMenu
Window	WindowMenu
Help	HelpMenu

Example:

menuOrder=FileMenu,QAMenu,ErpMenu,ExtrasMenu,WindowMenu,HelpMenu

File menu

The key values do not usually need to be changed.
```
FileMenuName=FileMenu
FileMenuTitle=&File
FileMenuContent=FileSave,FileSaveAll,-,FileExportTrans,FileImportTrans,-,
 actionRecentFilesList,-,FileExit
```
Individual adjustments are made in the configuration file Section 1.7.8.2.3.2, “ menuvisibility_PARTProject.cfg: Action names of menus, menu items, toolbars and buttons”.
Version management [Versioning system] menu

Normally the key values don't have to be changed.
```
QAMenuName=QAMenu
QAMenuTitle=&Versionsverwaltung
QAMenuContent=QALogin,QALegend
```
Individual adjustments are made in the configuration file menuvisibility_PARTProject.cfg.
ERP Menu

ErpMenu

Normally the key values don't have to be changed.
```
ErpMenuName=ErpMenu
ErpMenuTitle=ERP
ErpMenuContent=LinkDbLogin,LinkDbChangeGroup,CallLinkMgr,LinkDbShowLegend,PreferredRanges
```
Individual adjustments are made in the configuration file menuvisibility_PARTProject.cfg.

Extras menu

Normally the key values don't have to be changed.

ExtrasMenuName=ExtrasMenu
ExtrasMenuTitle=E&xtras
ExtrasMenuContent=ExtrasOfflineCD,ExtrasCipCatalog,-,actionPluginList,-,
 ExtrasEditClassSystem,ExtrasExportCSystemTranslation,ExtrasImportCSystemTranslation,-,
 ExtrasMessageList,-,ModePreferences,-,ShowPreferences

Individual adjustments are made in the configuration file menuvisibility_PARTProject.cfg.

Window menu

Normally the key values don't have to be changed.
```
WindowMenuName=WindowMenu
WindowMenuTitle=&Window
WindowMenuContent=actionWindowCascade,WindowsTile,WindowsTree,WindowsEdit,WindowsPreview
```
Individual adjustments are made in the configuration file menuvisibility_PARTProject.cfg.
Help menu

Normally the key values don't have to be changed.
```
HelpMenuName=HelpMenu
HelpMenuTitle=&?
HelpMenuContent=HelpHelp,HelpAbout,-,HelpLicenses,HelpSysInfo
```
Individual adjustments are made in the configuration file menuvisibility_PARTProject.cfg.
Standard [Default] toolbar

Standard [Default] toolbar

Normally the key values don't have to be changed.
```
StandardToolbar=MainWindow/Standard
StandardToolbarTitle=Standard
StandardToolbarContent=FileSearch,-,FileSave,FileSaveAll,-,UpdateIndex,ShowPublishingState
```
Individual adjustments are made in the configuration file menuvisibility_PARTProject.cfg.

Link database toolbar

Link database toolbar

Normally the key values don't have to be changed.

LinkDatabaseToolbar=MainWindow/LinkDatabase
LinkDataBaseToolbarTitle=Link database
LinkDatabaseToolbarContent=LinkDbLogin,LinkDbChangeGroup,CallLinkMgr,LinkDbShowLegend,
 PreferredRanges

Individual adjustments are made in the configuration file menuvisibility_PARTProject.cfg.

Block [hasSubMenuActions]

The [hasSubMenuActions] block contains the standard declaration for all actions with an additional menu level. The name of the top-level action is set as the key. The actions of the next level down are listed one after the other, separated by commas.

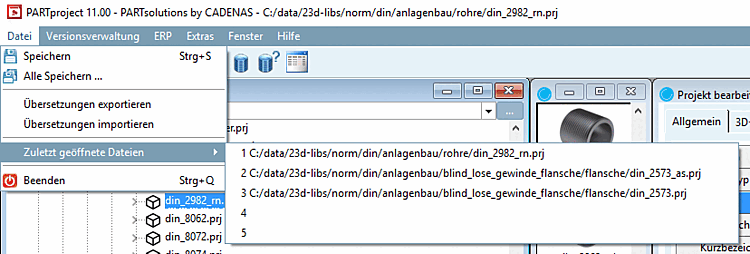

Example: "Recently opened files [Recent parts] " menu item, with sub-items

[hasSubMenuActions]

listOfMenus=actionRecentFilesList

actionRecentFilesListName=
RecentFile_Menu2Content=RecentFile_Menu0_Entry6,RecentFile_Menu0_Entry7,
 RecentFile_Menu0_Entry8,RecentFile_Menu0_Entry9,RecentFile_Menu0_Entry10
