4.3.3. Make database column visible for display in PARTdataManager

For the column to be displayed in the PARTdataManager column is displayed, two conditions must be met:

  1. Under Configure column display [Modify column display], the corresponding column must be set to Yes under Visible.

    In the Variable [Variable DB] DB columns and Variable columns, the assigned column name is displayed.

    The entry under Variable DB is fixed.

    The entry under Variable can be adjusted if necessary.

    [Note]Note

    Care must be taken to ensure that this name is used consistently for all configurations. (See the next two points in particular)

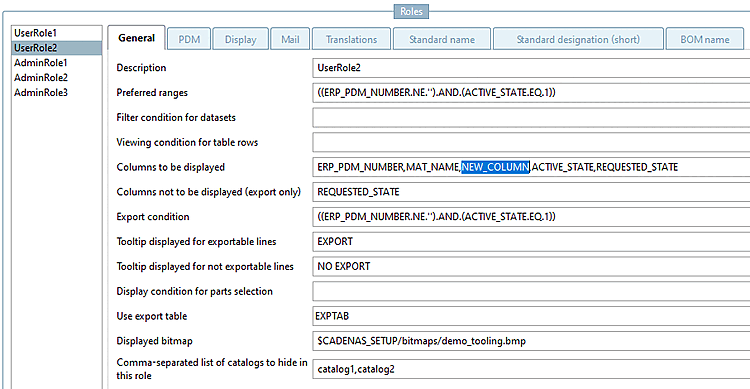

  2. In PARTadmin, the column must be entered in the desired role(s) under Columns to be displayed.

    [Note]Note

    Pay attention to which role you have selected on the left under Roles. The column display is always role-related.

    [Note]Note

    The position in the PARTdataManager corresponds exactly to the position in the listing.

Save the change.

-> A message appears stating that the link database index should be regenerated if the column is to be included in the search.

See Section 1.3.3.6.6.4, “LinkDB search index ”.

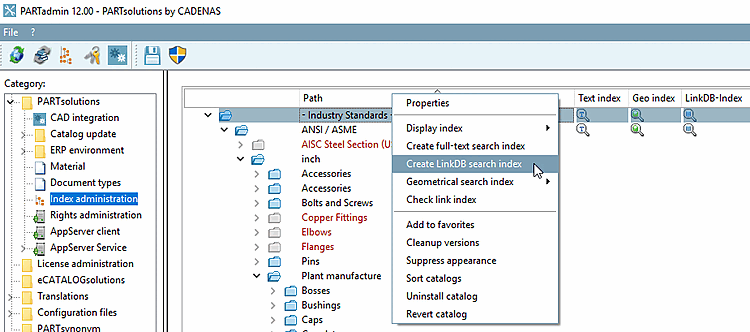

PARTadmin -> Index management [Index administration]

PARTadmin -> Index management [Index administration]

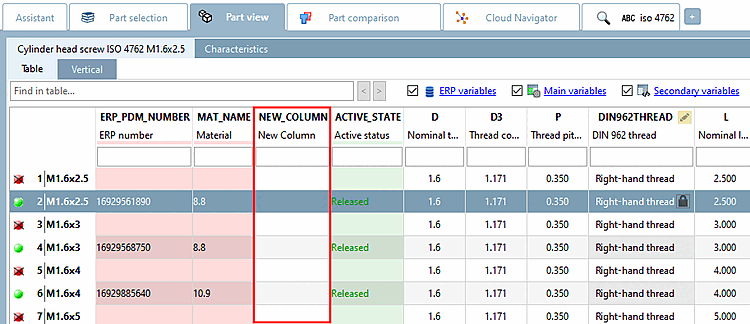

Result in the PARTdataManager

[Note]Note

To display the column in the PARTdataManager you must be logged in with the role that contains the column.
