For a server installation, select the option Software, data and setup local [Software, data and setup locally] in the installation routine under Target folder [Destination Folder] and adjust the paths of CADENAS DATA, CADENAS SITE SETUP and CADENAS Pool as desired.

Note CADENAS Pool must never be under CADENAS DATA!

Software, data and setup locally

Select the packages PARTapplicationserver (e.g. the links Activate Appserver Service and Deactivate Appserver Service [see below ] appear after the installation) and Enterprise 3Dfindit (which also includes PARTsolutions ERP and PARTapplicationserver ). This installs all applications (3Dfindit, PARTdataManager, PARTadmin, PARTlinkManager, PARTdataCenter, etc.). If ERP is desired, it is best to choose the option PARTsolutions ERP in addition to cover all eventualities.

Furthermore select the desired integration(s).

Note For a server client installation, integrations have ALWAYS to be installed on the server AND on the client.

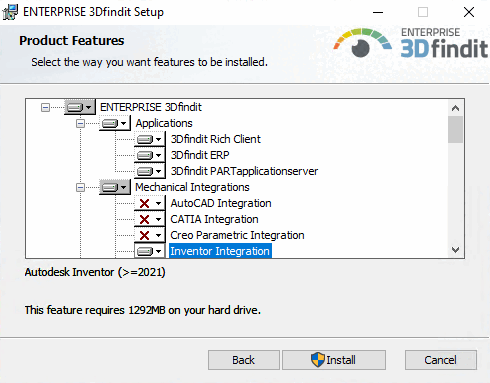

Applications -> PARTsolutions Enterprise, PARTsolutionsERP

If a server is to be set up minimally without additional functionality, select the option PARTapplicationserver under Applications. (PARTadmin is included.)

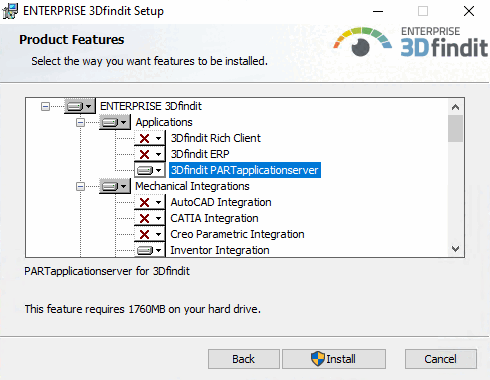

Applications -> PARTapplicationserver

Note

Whenever a central PARTapplicationServer is in use, it must be started as a service. The installation has to be finished. Make sure that a license for the Appserver is available and active. Click on the Activate Appserver Service entry in the start menu. Check in the Task Manager under Services whether the entry PAPPSERVER exists and the status is "Running". Details on the installation procedure can be found under Section 4.5, “ENTERPRISE 3Dfindit installation ”.
